300MHz, 2CH, 2GSa/s, 16CH LA, 2CH 25MHz AFG

SKU: MSO/DS2000/A Category: Tags: , ,

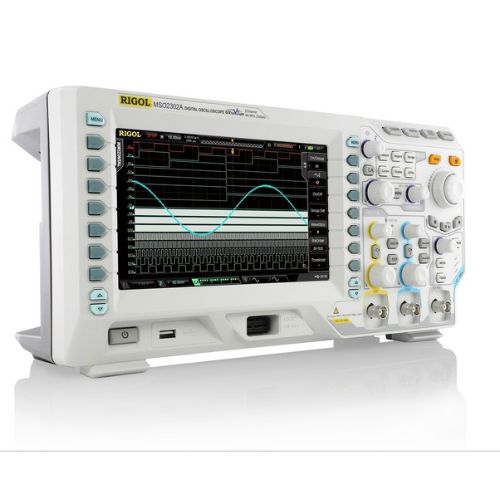

The Rigol MSO2302A-S is a very high quality two channel digital storage oscilloscope. It features a real-time sample rate of up to 2 GSa/s, a bandwidth of 300 MHz and an additional built-in 2CH arbitrary waveform generator for frequencies of up to 25 MHz.

The Rigol oscilloscopes are equipped with well designed and easy to use controls offering comprehensive ease-of-use functions for all measuring tasks. The menu navigation is intuitive and available in several languages. This high performance standard not only ensures capturing real-time instantaneous signals, but also observes details of repeated signals.

Analog channel bandwidth: 300 MHz
2 analog channels, 16 digital channels
Real-time Sample Rate: analog channel up to 2 GSa/s, digital channel up to 1 GSa/s (MSO)
Memory Depth: analog channel up to 14 Mpts (standard)/56 Mpts (optional), digital channel up to 14 Mpts (standard)/28 Mpts (optional, MSO)
Up to 52,000 wfms/s waveform capture rate
Up to 65,000 frames hardware real-time waveform record, playback and analysis functions (standard)
Innovative "UltraVision" technology
A variety of trigger and bus decoding functions (Parallel, RS232, I2C, SPI, CAN)
Low noise floor, vertical scale range: 1 mV/div to 10 V/div
