350MHz BW,4Channel,8GSa/s

SKU: MSO5000 Category: Tags: , ,

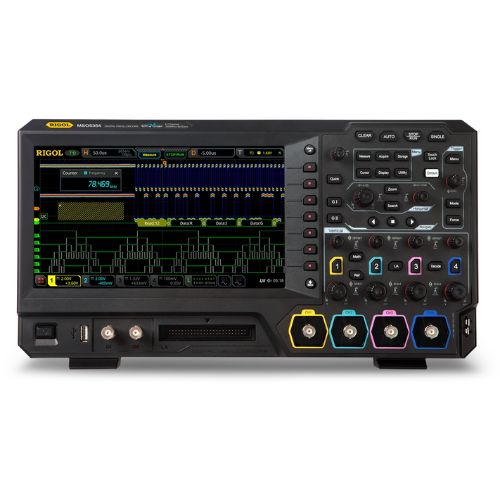

The MSO5354 series is a multifunctional and high-performance digital oscilloscope designed on the basis of the UltraVision II technology developed by RIGOL. Integrating 6 independent instruments into one, the MSO5354 series is equipped with super high sample bandwidth ratio of 8 GSa/s, extremely high memory depth of up to 200 Mpts, clear 9" display, excellent waveform capture rate of 500.000 wfms/s, and powerful data analysis functions.

Analog bandwidth: 350 MHz, 200 MHz, 100 MHz, and 70 MHz; bandwidth upgrade
option supported
4 analog channels?standard 16 digital channels(LA probe required)
Up to 8 GSa/s real-time sample rate
Up to 200 Mpts memory depth (option)
High waveform capture rate (over 500,000 wfm/s)
Auto measurement of 41 waveform parameters; full-memory hardware measurement
