ZENMUSE S1

Multiple Lighting Modes

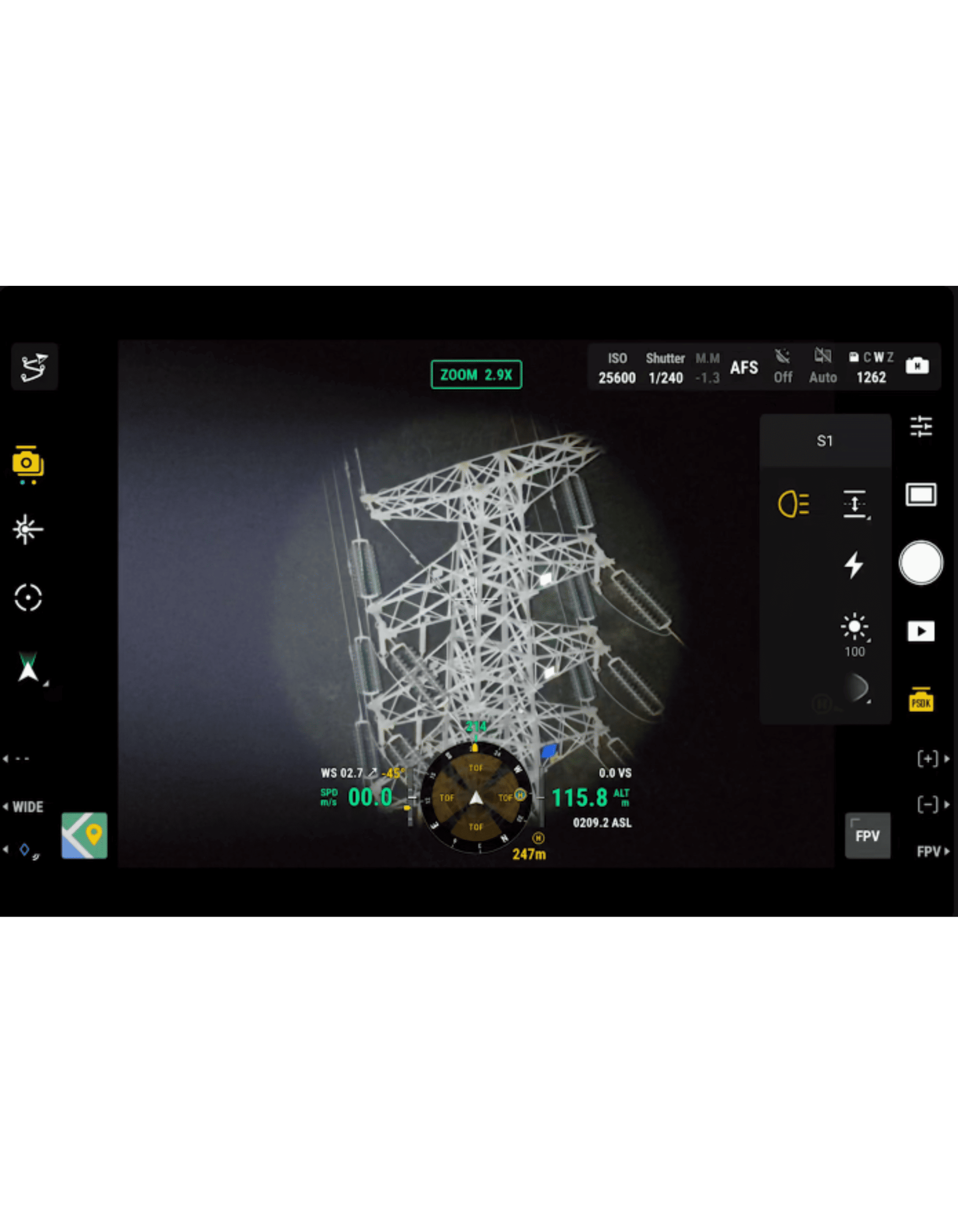

Low Beam Mode

Low Beam mode offers a 15° field of view (FOV) with an illumination range of up to 150 meters, effectively matching the coverage of a camera at 5x zoom or higher. It’s ideal for short-distance search and inspection tasks.

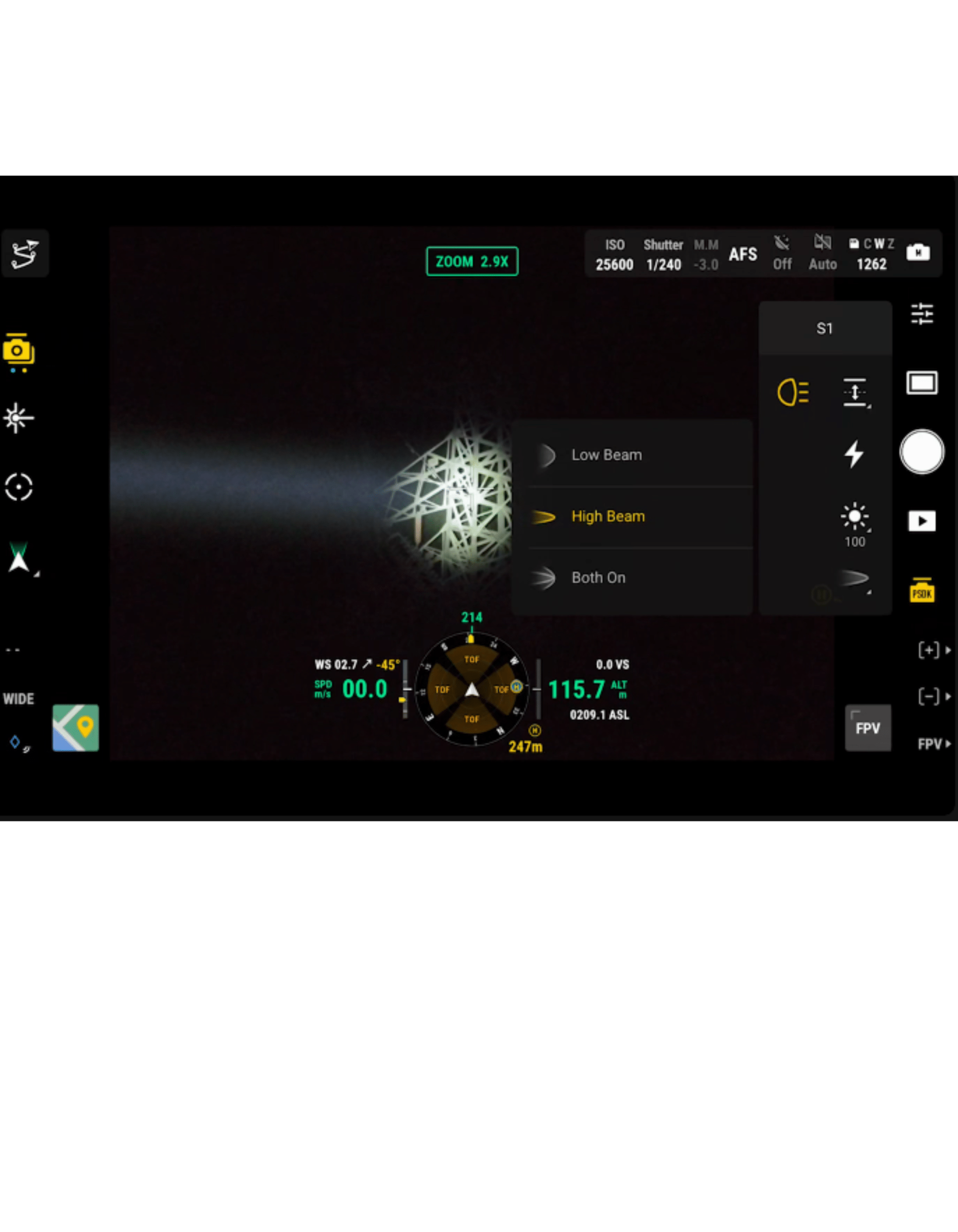

High Beam Mode

High Beam mode uses LEP (Laser Excited Phosphor) technology to deliver powerful light penetration with a 4° field of view (FOV) at up to 300 meters. It aligns with the coverage of a camera at 15x zoom or higher, making it highly effective for emergency rescue and public safety missions.

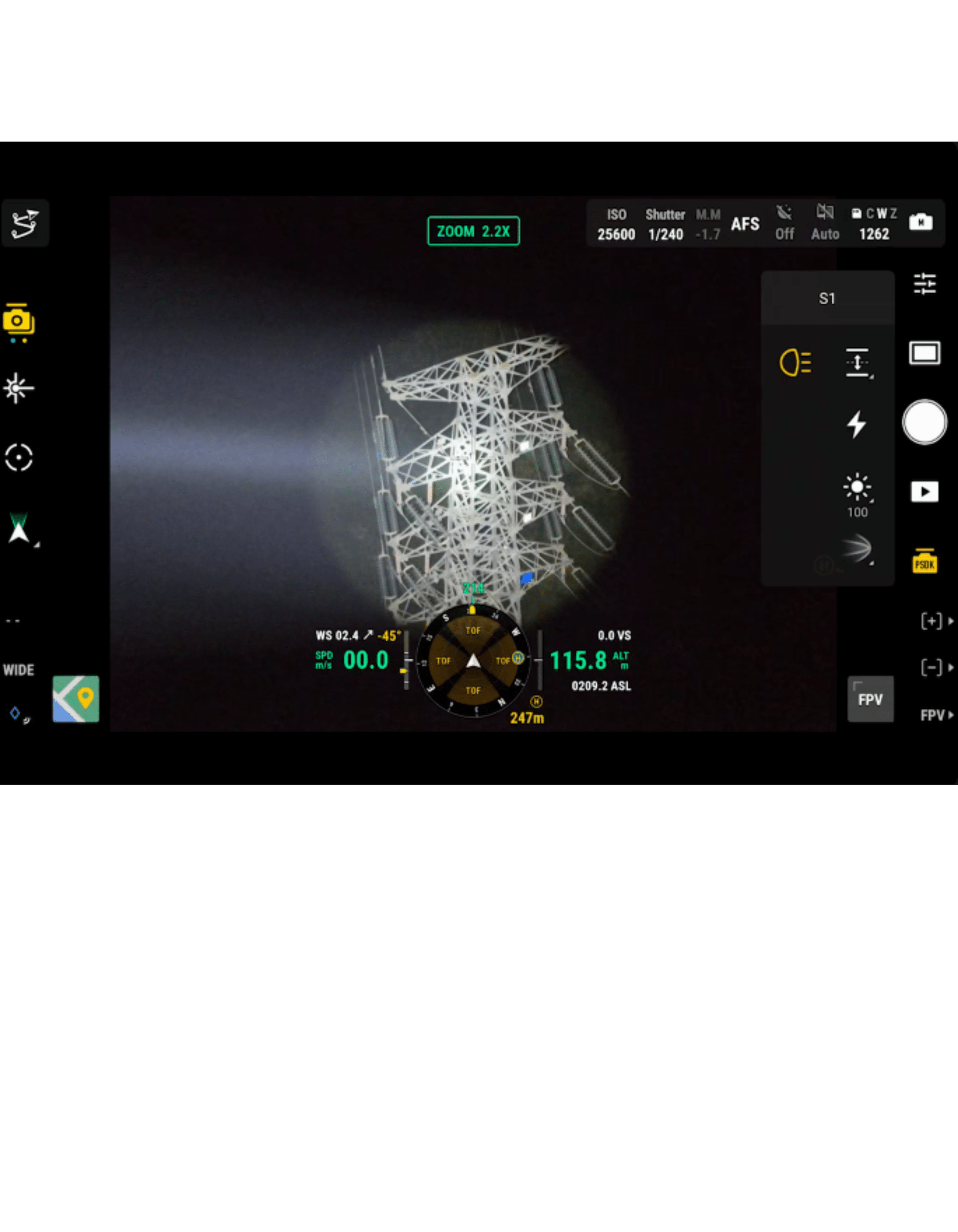

Both on Mode

Both On mode activates both low and high beams together, boosting central illuminance beyond that of High Beam alone. It retains the 15° FOV of Low Beam while extending visibility up to 500 meters, providing maximum illumination for enhanced situational awareness.

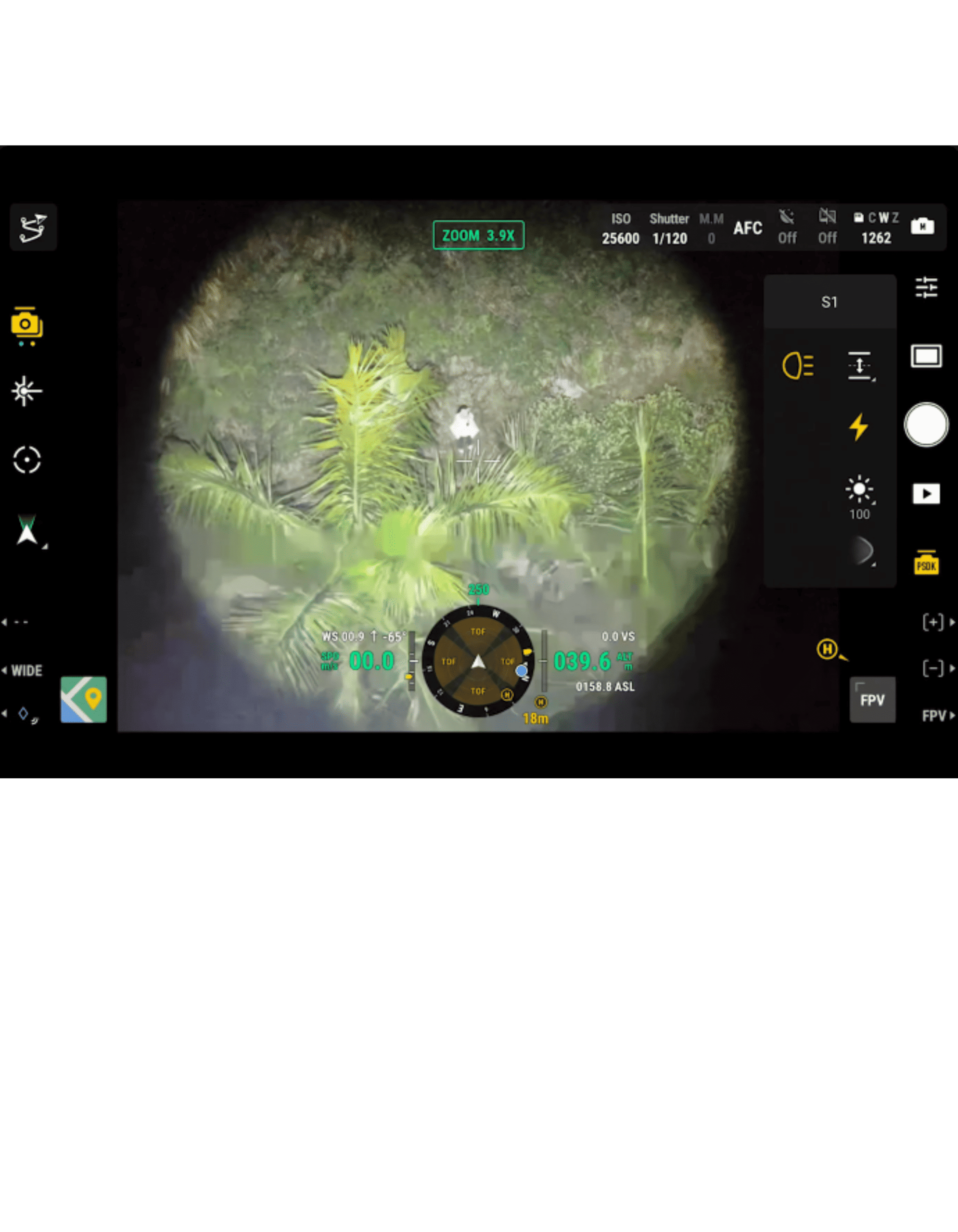

Strobe Mode

Strobe Mode on the Zenmuse S1 enables high-frequency flashing to effectively capture attention, making it ideal for signaling in emergency rescue and public safety situations.

Brightness Meets Energy Efficiency

Zenmuse S1 delivers a maximum central illuminance of 35 lux at 100 meters, providing ample lighting in dark environments to clearly distinguish details of the subjects. Additionally, the power consumption in the High Beam mode is only 17 W, reducing the power load on the drone and helping to maintain the flight time.

Reliable and Intuitive

Capture everything. Up close or from a distance. In true living colour or thermal. An integrated laser rangefinder (LRF) measures the distance to an object at up to 1200 m away. A powerful, integrated payload that unleashes advanced intelligent capabilities for DJI’s industrial drone platforms.

Payload Protection

Zenmuse S1 is equipped with multiple protection mechanisms for temperature, overcurrent, power, and more, enhancing the product’s reliability and lifespan.

Burn Protection

The Zenmuse S1 is designed with a plastic casing that keeps the contact surface temperature below 50°C (122°F), effectively reducing the risk of burns during operation.

Eye Protection

To protect the operator’s vision, the Zenmuse S1 automatically dims to 40% brightness when the drone is not in flight, reducing glare and enhancing eye safety.

Efficient Remote Controller Shortcuts

The Zenmuse S1 supports customizable remote controller shortcuts, enabling quick control of brightness, power, and lighting modes. This intuitive setup enhances operational efficiency and user convenience.

Strong Environmental Adaptability

With an IP54 rating and an operating temperature range of -20° to 40°C (-4° to 104°F), the Zenmuse S1 is built for strong environmental adaptability, ensuring reliable performance in diverse conditions.
