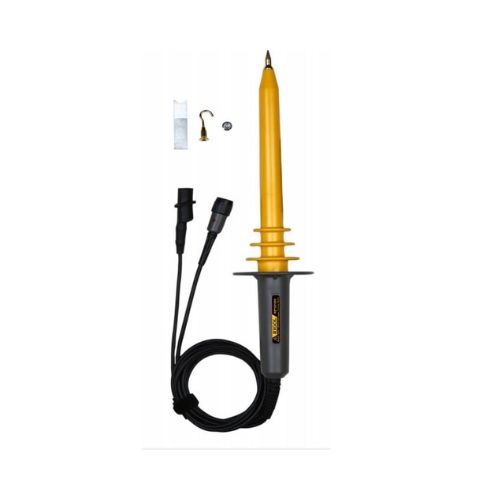

10kV, 50MHz High Voltage Probe

SKU: RP1010H Category: Tags: , ,

For digital oscilloscopes, the signal under test needs to be connected to the measurement channel via various oscilloscope probes or 50 ohm cables.The Probing is very important to making quality measurements. If the probe performance is not adequate or if you did not select the proper probe for your application, you will see distorted or misleading signals on your oscilloscope.

Bandwidth: DC ~ 40MHz
Damping factor: 1000: 1
Input resistance: 100 MW ? 5%
Input capacity: 3pF ? 0,5pF
Maximum working voltage: DC: 0 ~ 10 kV; AC: = 20kVpp pulse; AC: sine wave = 7kVrms
