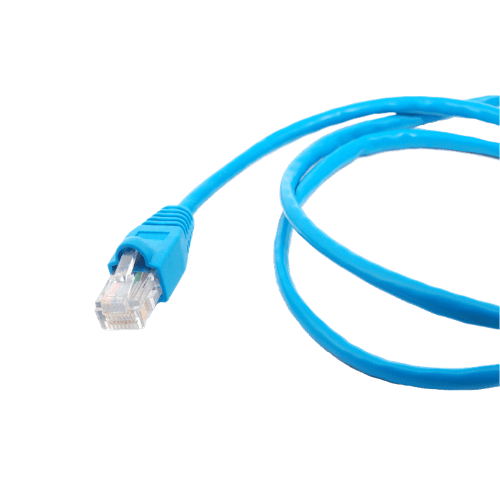

LT-C6AUTPCM85

Application
Telephone and other communication circuits such as voice, data, and audio for on-premise customer systems.
Conductor: 23AWG Bare Solid Copper
Insulation: HD-PE
PVC Jacket available
10G Base T / 1000Base T (IEEE 802.3ab)

Industry Standards:
UL/CSA Listed CM
Verified to ANSI/TIA-568-C.2 CAT.6A
RoHS / Reach compliant

Electrical Characteristics

Impedance: 100?15ohms (1-600MHz)
Pair to Ground: 330Pf/100M MAX.
Propagation Delay Skew: 45ns/100M
Dielectric Strength: AC-500V/1 Min



SKU: LTC6AUTPCM85 Category:
