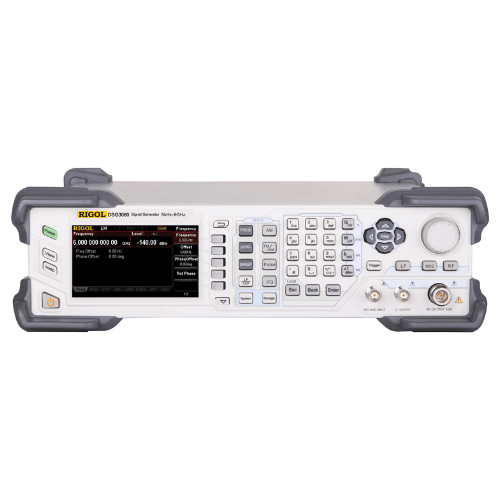

The DSG3060-IQ RF signal generator offers standard AM/FM/?M analog modulation, as well as options for I/Q modulation and I/Q baseband output with a maximum frequency 6 GHz. Featuring a high signal purity with phase noise measuring <-110 dBc/Hz @ 20 kHz (typical) and a wide output range of -130 dBm to +13 dBm, the DSG3000 RF signal generator has standard pulse modulation with an on/off ratio of up to 80dB, with optional pulse train generator available. The DSG3000 series also has an amplitude accuracy of < 0.5 dB (typical). Beside the analog output the devices include a USB-Host- and a USB-device and a LAN interface. Highest frequency: 3 GHz/6 GHz Amplitude accuracy: < 0.5 dB (typical) Output amplitude range: -130 dBm to +13 dBm High signal purity, phase noise: < -110 dBc/Hz @ 20 kHz (typical) Standard 0.5 ppm internal clock; 5 ppb high stable clock for option Standard AM/FM/?M analog modulation Standard pulse modulation; on/off ratio up to 80 dB; pulse train generator (optional)
