DL3021A

150V/40A, 200W

SKU: DL3021A Category: Tags: , ,

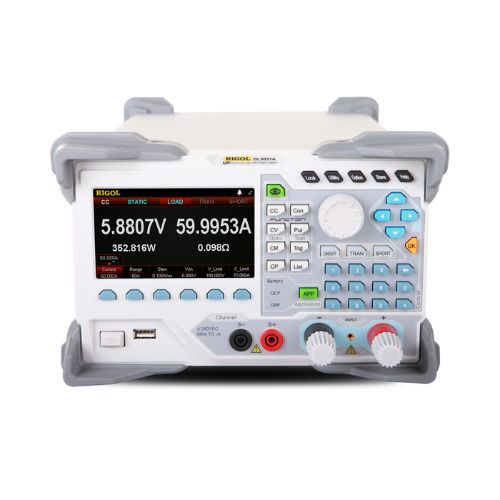

The Rigol DL3021A electronic DC load belongs to the DL3000 series and has a power of up to 200W. The electronic load has 1 channel with an input voltage of 150V and an input current of 40A with a resolution of 0.1mA/1mV.

The Rigol DL3000 series is an affordable and comprehensive range of programmable loads. These devices offer a lot of functionality and possibilities for relatively little money. There are also several options to connect the electronic load to a PC for extensive logging. The electronic load is fully controllable, and extensive graphs and measurement results can be displayed. The loads have an internal memory to store measurement results locally and the ability to store the measurements on a USB drive.

Single input, 150V / 40A, total power up to 200W
Dynamic mode: Up to 15kHz (DL3021), Up to 30kHz (DL3021A)
Adjustable current rising speed: 0.001A/?s to 2.5A/?s (DL3021), 0.001A/?s to 3A/?s (DL3021A)
Minimum readback resolution: (TBS)
4.3-inch TFT LCD, capable of displaying multiple parameters and states simultaneously
Over-voltage / over-current / over-power / over-temperature / reverse voltage protection
4 static modes: CC, CV, CR, CP
