As the inventor of the headend, we offer a broad range of sophisticated services for signal distribution of live and on-demand signals in hospitality, government bodies and AV over IP applications in general, nationally and internationally.

Restrata

GSS Smart Solutions is a trusted name in professional signal reception and transmission technologies, with a legacy that traces back to the renowned Grundig brand. Evolving into GSSO, the company continues its mission to deliver high-quality, German-engineered solutions that meet the highest standards of reliability and performance. With over 30 years of industry experience, GSS specializes in TV headends, encoders, decoders, transcoders, and AV over IP technologies tailored for sectors such as hospitality, public institutions, and large-scale facilities. Their commitment to innovation and quality ensures seamless integration and operation, especially in demanding environments. As a Smart Solutions partner of Tabbara Electronics, GSS reinforces its dedication to delivering future-ready, efficient, and secure broadcast and multimedia infrastructures.

Sound and Picture perfect

As the original pioneer of headend technology, GSS delivers advanced solutions for live and on-demand signal distribution across a wide range of sectors  including hospitality, government, and AV over IP applications  both locally and globally.

With over 30 years of innovation and excellence, our high-performance “Made in Germany” systems represent the pinnacle of digital TV experiences. Through Tabbara Electronics, you gain access to secure, crystal clear picture quality and professional-grade service that ensures maximum viewing comfort.

Receive, decode,process

The right headend station for your application

GSS headend stations allow you to receive satellite (DVB-S, DVB-S2, DVB-S2X), terrestrial (DVB-T), and cable (DVB-C) signals for professional channel preparation and streaming applications.

The DVB Common Interface (CI) and multiplex functions allow pay TV channels to be decrypted centrally and programs to be sorted into new channel assignments or, thanks to program filters, services for data reduction to be switched off directly.

The right choice for every application: You can obtain the head ends in different designs and for different areas of application. For example the 19″ headends as IPTV source for hospitality projects, data loggers and transcoding servers as well as compact industrial appliances with active and passive cooling for DVB-C modulation for feeding into coax networks in residential buildings.

  • DVB-S/S2/S2X-, DVB-T/T2- and DVB-C reception
  • HLS/SRT input
  • Central decryption using CA modules
  • Separate network interfaces for streaming & management
  • Multiplex, filtering and routing functions
  • Creation of program lists (M3U, LCN, etc.)
  • Intuitive operation via HTML-GUI
  • Remote access worldwide via OpenVPN
Teracue DMM-Series
Teracue DMM-Series

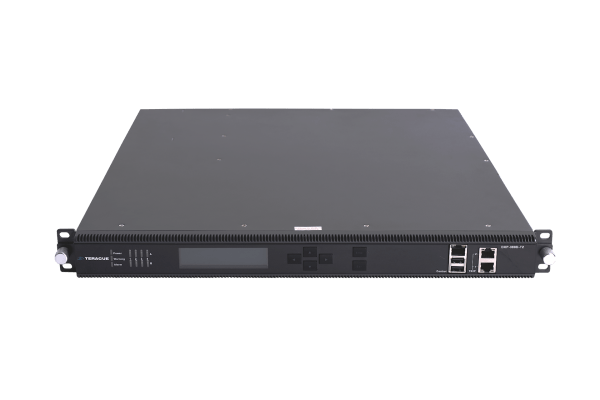

Front view of the Teracue DCH 380D
Rear view of the Teracue DCH 380D

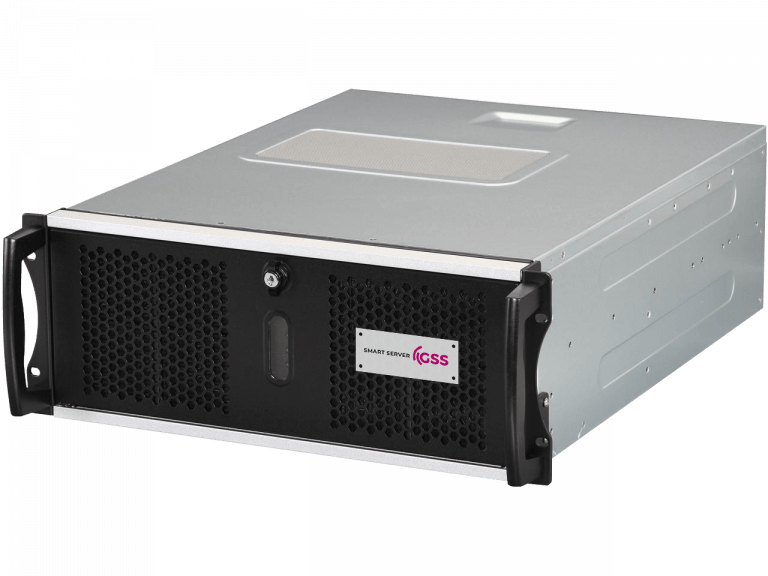

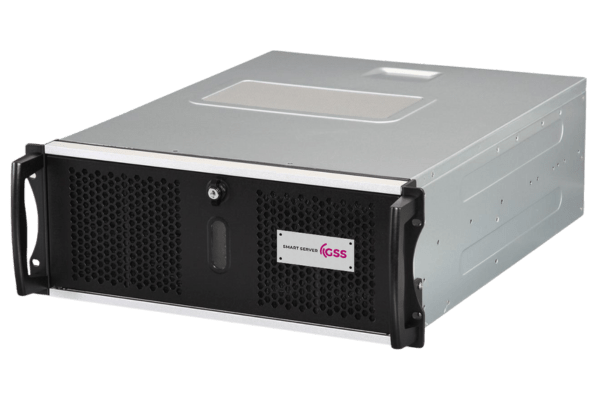

GSS Smart Server

High-performance 19” headend station

The official successor to the GSS. lamina: This server-based headend station forms the interface between reception technology and IT. Equipped with up to 32 DVB-S/S2/S2X tuners, optional HLS input routing to SPTS (UDP/RTP) and up to 24 DVB-C output channels (depending on the model), the Smart Server allows maximum flexibility for your reception system. Stream live TV, decrypted pay TV channels, HTTP live streams (HLS) from data centers, and up to 10 custom Media Player channels in continuous loop to your IPTV network. Simultaneous modulation of the services in DVB-C is possible with the hybrid options. The proven intuitiveness of the HTML GUI guides you through the settings and offers a variety of useful features, such as loading configurations for mobile reception equipment on ships, generating program lists for a wide range of TV and set-top box manufacturers, as well as filtering services. When an Internet connection is available, the Smart Server can be accessed and managed worldwide via OpenVPN.

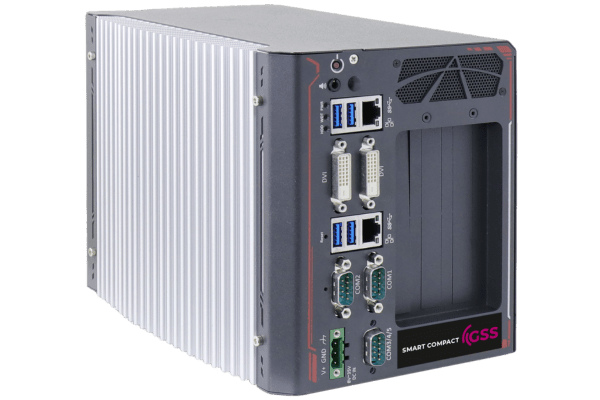

GSS Smart Compact

Compact and innovative: HLS/SRT input routing included

The new smart Compact headend station operates on a specially designed industrial appliance. The active and passive cooling combination guarantees smooth continuous operation. Depending on the variant, the Smart Compact outputs 60 SPT streams (UDP/RTP) and 16x MPT streams, in addition to converting up to 16 DVB-S2X transponders to DVB-C. The routing of 3 HTTPS-Live-Streams or SRT to IP streams and/or DVB-C is possible without additional licenses. With these features, the Smart Compact product series is not only a successor to the GSS.compact STC 4-16 – it also opens up new possibilities for the distribution of picture and sound for residential construction and small cable networks.

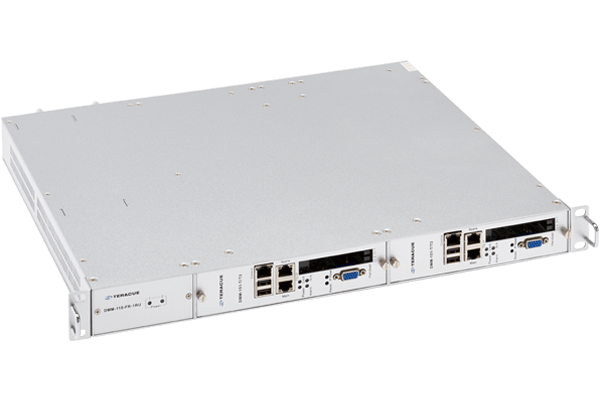

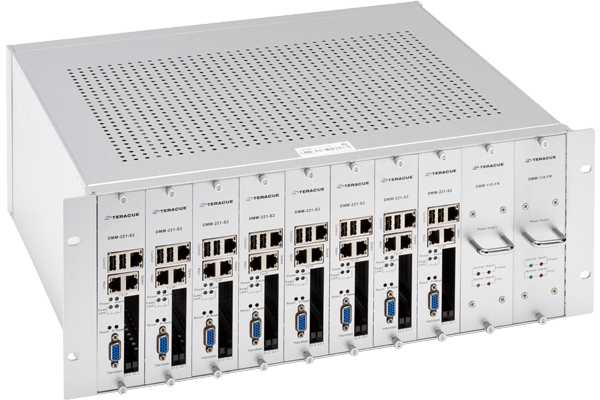

Teracue DMM-Series

Modular DVB-Gateway (1HE / 4HE)

The chassis and modules of the DMM series form a modular DVB-to-IP solution. The modules of the DMM-221 series are equipped with 2 independent tuners for the reception of DVB-S/S2, DVB-T/T2 or DVB-C per variant. The DMM-421 modules allow the reception of DVB-S/S2, DVB-T/T2 or DVB-C via 4 independent tuners. In addition to the TS/IP output, a variety of other outputs such as ASI, HDMI and CVBS are supported. The IRD contains a H.265 (HEVC), H.264 (AVC) and MPEG-2 decoder. Two DVB Common Interfaces (CI) for Conditional Access Systems (CAS) are available per module for decoding multiple pay TV services. Hot-swap receiver modules and a redundant power supply in the DMM-110-FR chassis make the DVB gateway a perfect component in your IPTV reception system.

Teracue DMM-Series

Modular DVB-Gateway (1HE / 4HE)

The chassis and modules of the DMM series form a modular DVB-to-IP solution. The modules of the DMM-221 series are equipped with 2 independent tuners for the reception of DVB-S/S2, DVB-T/T2 or DVB-C per variant. The DMM-421 modules allow the reception of DVB-S/S2, DVB-T/T2 or DVB-C via 4 independent tuners. In addition to the TS/IP output, a variety of other outputs such as ASI, HDMI and CVBS are supported. The IRD contains a H.265 (HEVC), H.264 (AVC) and MPEG-2 decoder. Two DVB Common Interfaces (CI) for Conditional Access Systems (CAS) are available per module for decoding multiple pay TV services. Hot-swap receiver modules and a redundant power supply in the DMM-110-FR chassis make the DVB gateway a perfect component in your IPTV reception system.

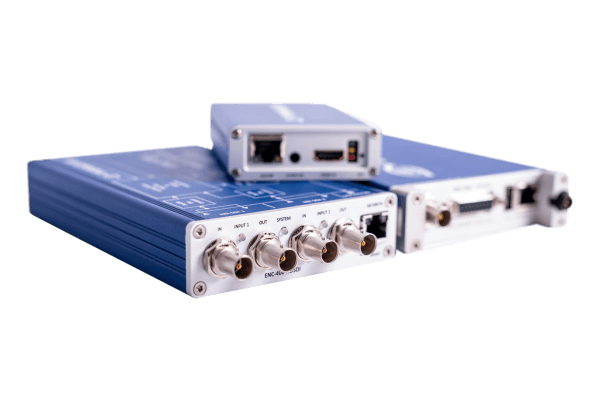

Video encoders for IPTV solutions, Live-streaming applications and multistreams

Our encoders and encoding solutions are specifically designed for IPTV and live scenarios and have been developed for a 24/7 operation. The application areas of our encoding products are all the areas where video and PC signals have to be shared, published, distributed or recorded in high resolution.

  • Reliable 24/7 video transmission over IP networks
  • Support for common HD-SDI and HDMI standards
  • Simple operation via a user interface in the web browser
  • Sturdy yet compact design

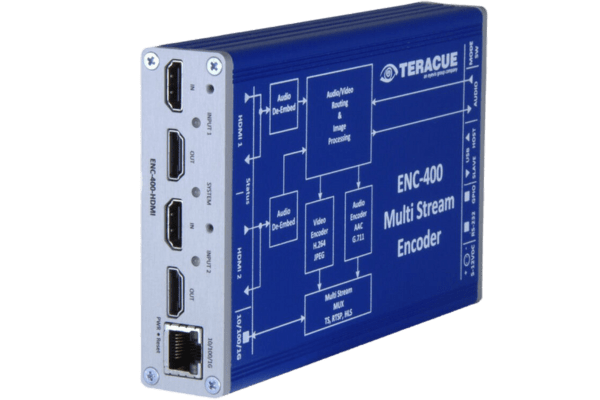

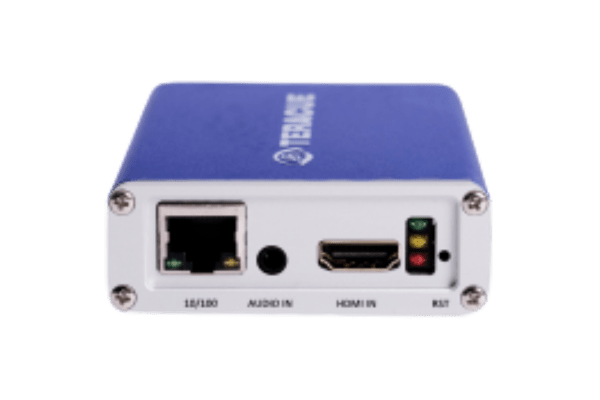

ENC-500-HDMI

HD/SD/4K H.264 and MJPEG encoder

The ENC-400 – a fanless HD/SD H.264 A video encoder for transmitting multiple streams to different destinations with different bit rates and protocols. The built-in frame synchronizer guarantees stable signal processing. Both inputs provide a looped output and can be used as redundant or to transmit two individual input signals. In addition to the latest H.264 The encoding technology of the ENC-400 also supports the older MJPEG format for live streaming and recording. Its low weight as well as the compact and fanless aluminum housing also make the device portable and not least therefore the ideal solution for broadcasting, IPTV and webcasting.
As portable and in 1U housing for rack mounting up to maximum 6 modules are available.

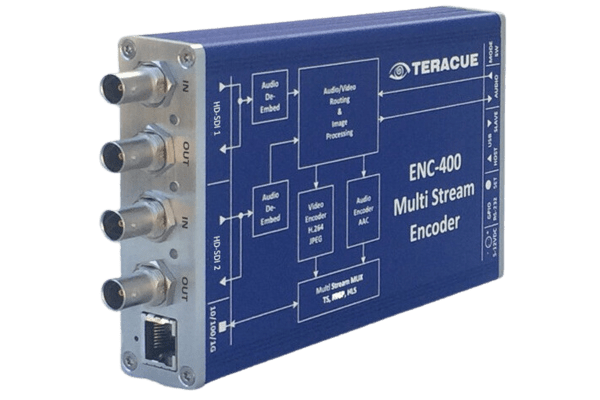

ENC-400-HDSDI

ENC-400-HDMI2

ENC-400-HDMI2

ENC-400-HDSDI

ENC-400-HDMI

ENC-400-HDMI

ENC-500-HDMI
MC-ENC-4K-1RU

ENC-500-HDMI

HD/SD H.265 (HEVC) and H.264 Encoder

Designed specifically for IPTV and live streaming applications, the ENC-500 encoder is the ideal solution for distributing individual computer DVI signals over networks or the Internet. By encoding in H.265 HEVC, it is possible to further reduce the required data rate and transmit it securely and permanently even through very limited Internet connections. The possible implementations of the encoder are medical, military and other security-related applications in control rooms or training applications where HDMI/DVI signals in high resolution from medical instruments and cameras, from radar systems, digital signage players or any other desktop application need to be shared, published, distributed or recorded.

MC-Screen

Universal H.264 desktop encoding for standard IP networks

MC-SCREEN encodes any local desktop and screen application such as PowerPoint, Excel, Word, or web pages. High resolutions are supported in order to reproduce texts, graphics and fine image content in detail. In addition, MC-SCREEN transmits both unicast and multicast streams, which are encoded as MPEG-2 SD/HD and H.264 SD/ HD. All output streams are ISO standard compliant transport streams. MC-SCREEN is a purely software-based encoder, developed for PCs and laptops without the need for a framegrabber.

Additional functions include: Text/date/time/logo overlay, as well as scaling and screen resolution conversion. Streaming desktop content for digital signage purposes is another conceivable application.

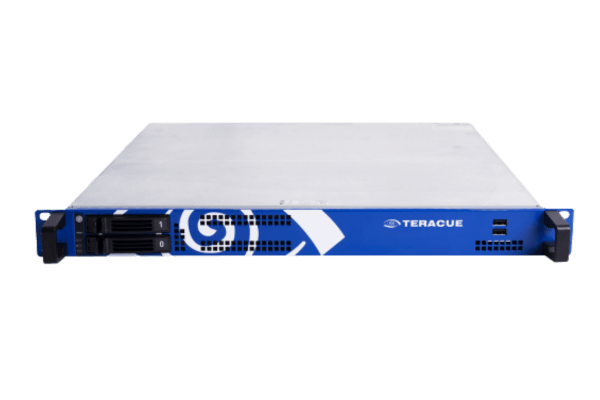

MC-ENC-4K-1RU

IPTV and livestreaming

The MC-ENC-4K-1RU encoder is designed for encoding and streaming UHD resolutions. It is the ideal solution to distribute signals through a network in very high resolution. Possible applications of the encoder are in the medical field as well as in control centers to distribute high-resolution material with all details retained.

Video decoder for IPTV-solutions, livestreaming applications and multistreams

Conversion of IP streams to AV interfaces

The Teracue product range offers reliable decoders for 24/7 video decoding. The decoders receive the stream via a local network or through the Internet and output the video signals via HDMI or SDI. The low signal propagation time makes the decoders ideal for live applications.

  • Smooth and trouble-free output of video signals
  • Reliable 24/7 application
  • Support of common TV standards
  • Robust and compact design

ENC-500-HDMI
MC-ENC-4K-1RU

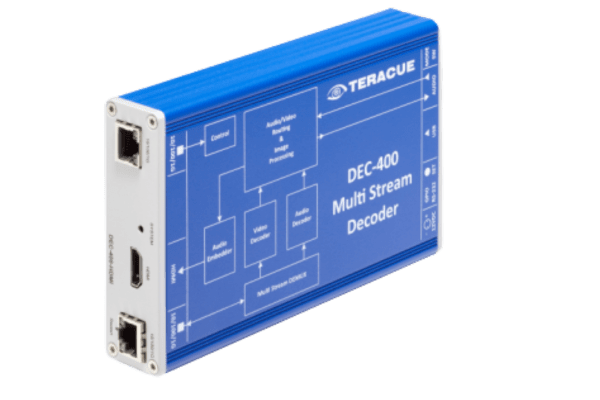

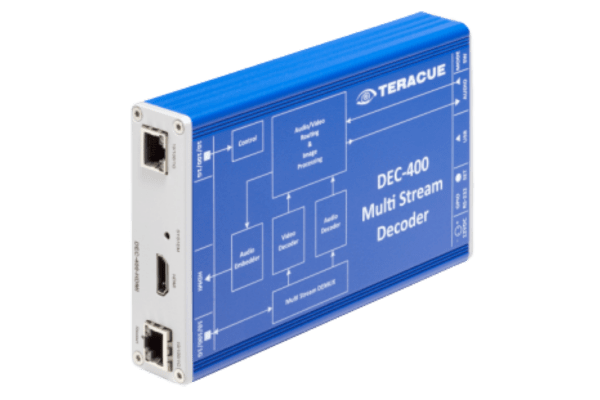

DEC-400 series

HD/SD H.264, MPEG-2 and NDI decoder

The DEC-400 Decoder series is Teracue’s counterpart to the ENC-400 Encoder Series. Livestream H.264, MPEG-2-SD/HD, NDI® and IPTV decoder for HDMI or HDSDI. The combination of high performance and simplicity allows users to get up and running with reliable performance in no time. The DEC-400-HDMI and DEC-400-HDSDI are designed for an easy 19″ installation and for a professional 24/7 operation. The DEC-400-HDMI is also available as a compact stand-alone unit.

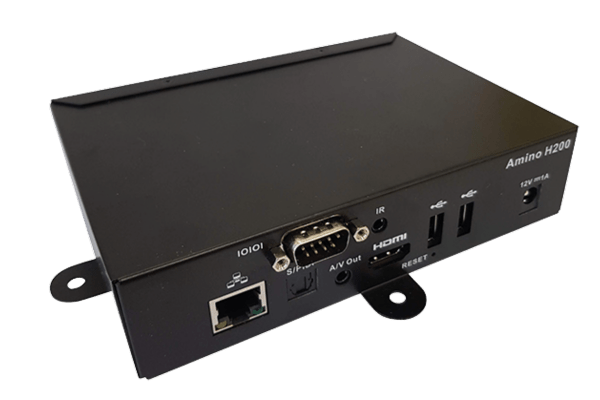

Amino H200

Rugged H.265 (HEVC) Decoder with PoE

AV1/HEVC 4Kp60 set-top-box with HDMI 2.1-, S/PDIF-, IR-extender-, 3,5mm composite AV-, RS232- and gigabit-ethernet-port (PoE). Controllable via the Teracue Element Manager.

Tamper-proof, robust housing with VESA mount.

Transcoding Routing
Livestream transcoder / IP stream router

Teracue Application Cloud

The Teracue Application Cloud (TAC) combines the functions of a digital router and a powerful transcoder. A single application that handles video and audio codecs as well as a wide variety of transport protocols.

The TAC provides control over routing and transcoding of incoming and outgoing live SD/HD/4K streams in the same intuitive, easy-to-use interface. Maximum failure-safety is guaranteed by the client/server-based system, which can be designed as required and expanded at any time.

User and role management enables the detailed definition of individual authorizations. This personalization ensures that users can only view, modify, create, or delete the content that is shared with them. An innovative preview area displays the most important parameters, such as bitrate, FPS, and input and output streams, at a glance.

  • Reliable 24/7 video transmission over IP networks
  • Support for common HD-SDI and HDMI standards
  • Simple operation via a user interface in the web browser
  • Sturdy yet compact design
ENC-500-HDMI
MC-ENC-4K-1RU

Teracue Application Cloud (TAC)

Teracue Application Cloud

With the TAC, a system can be designed, operated and adapted at any time according to individual customer requirements. The Teracue Application Cloud offers the convenience of an all-in-one router and transcoder. Various input and output protocols are supported and can be played back through the integrated user-managed web player. The application is flexible: it can support both an organization’s own streaming platform or the foundational editing of streams in resolutions and codes. Due to its modular design, the platform can be expanded at any time in terms of overall computing power by adding additional agents (appliances).

SHLS 710/720

Live-TV-transcoder with an adaptive HLS-output

The 19″ 1U transcoder converts up to 10 SPTS streams from HEVC (H.265) to MPEG-4 (H.264) or up to 20 SPTS streams from MPEG-4 (H.264) to MPEG-2 (H.262). The transcoding processes specially designed for variable bit rates enable central processing of streams in conjunction with multiplexers and headends for cable network operators and multisubscriber systems. In HLS mode, input signals can be transcoded and routed to adaptive HLS. The integrated Media-Player additionally streamt up to 10 channels per SPTS. Thanks to the integrated file converter, content can be easily uploaded to the device via HTML-GUI.
