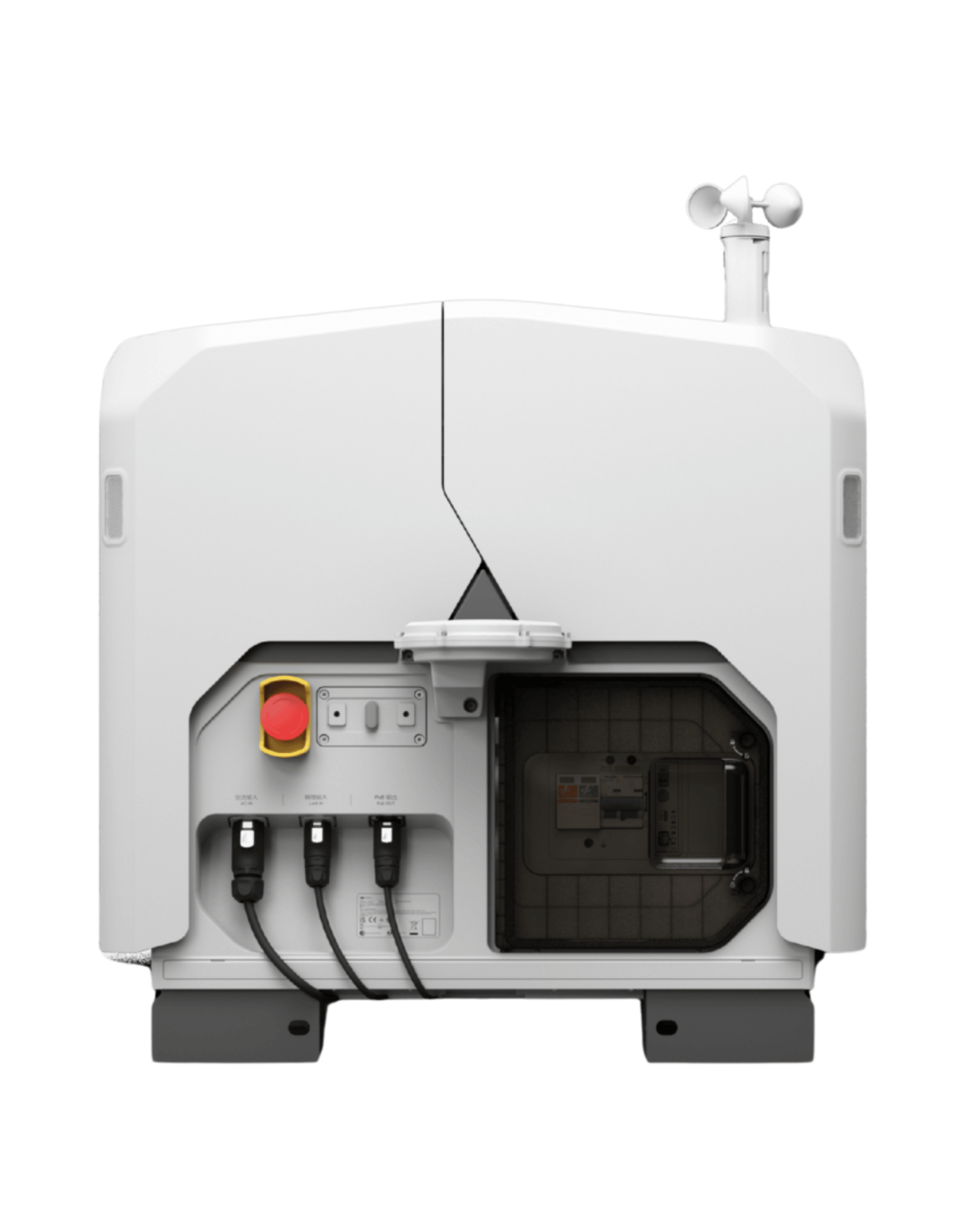

DJI DOCK 3

DJI’s First Dock Adaptable for Vehicle Mounting

Datasheet

Contact Us

Equipped with Matrice 4D or Matrice 4TD high-performance drones, DJI Dock 3 empowers 24/7 remote operations and, for the first time, supports mobile vehicle-mounted deployment, effortlessly adapting to various environments. The drones utilize the same cameras as the Matrice 4 Series but offer improved flight and protection performance.

Highlights

Adaptability

Fixed-Mounted Deployment

The new D-RTK 3 Relay Fixed Deployment Version offers superior anti-interference performance for video transmission and satellite acquisition. Installing it at elevated locations can effectively address RTK and video transmission signal issues caused by obstructions, extending the maximum transmission distance to 25 km. This capability allows for flexible site selection of Dock 3 based on actual operational needs.

Near High-Rise Buildings

Installing the D-RTK 3 Relay on rooftops can significantly enhance signal quality, allowing Dock 3 to be deployed next to high-rise buildings or substation walls.

Near Communication Towers

Deploying the D-RTK 3 Relay on a nearby communication tower can significantly enhance signal quality during Dock 3 operations, ensuring safe takeoffs and landings even in environments with interferences from the communication tower.

Mobile Vehicle-Mounted Deployment

DJI Dock 3 is DJI’s first Dock to support mobile vehicle-mounted deployment. Optimized for this purpose, the Dock’s overall structure, components, and air conditioning have undergone vehicle vibration testing, with new features such as horizontal calibration and cloud-based dock location calibration. For emergency operations or long-distance inspections, using DJI Dock 3 Vehicle-Mounted Gimbal Mount for mobile deployment provides a convenient solution when fixed deployment is impractical in temporary scenarios.

Cloud-Based Dock Location Calibration

During mobile operations, indoor personnel can use DJI FlightHub 2 to remotely set the dock’s location and assign tasks on the cloud, thereby enhancing personnel and scheduling efficiency.

Safe Dual-Dock Deployment

Two docks can be deployed on a single vehicle simultaneously, achieving a significant efficiency boost. DJI Dock 3 employs a special take-over pattern to avoid drone-to-drone collisions and ensure operational safety, allowing the two docks to alternate tasks in an orderly manner.

Dual-Drone Rotation

Automated hovering rotation of two drones enables continuous real-time aerial footage transmission. In emergency scenarios, a spotlight can be equipped to provide full-time illumination.

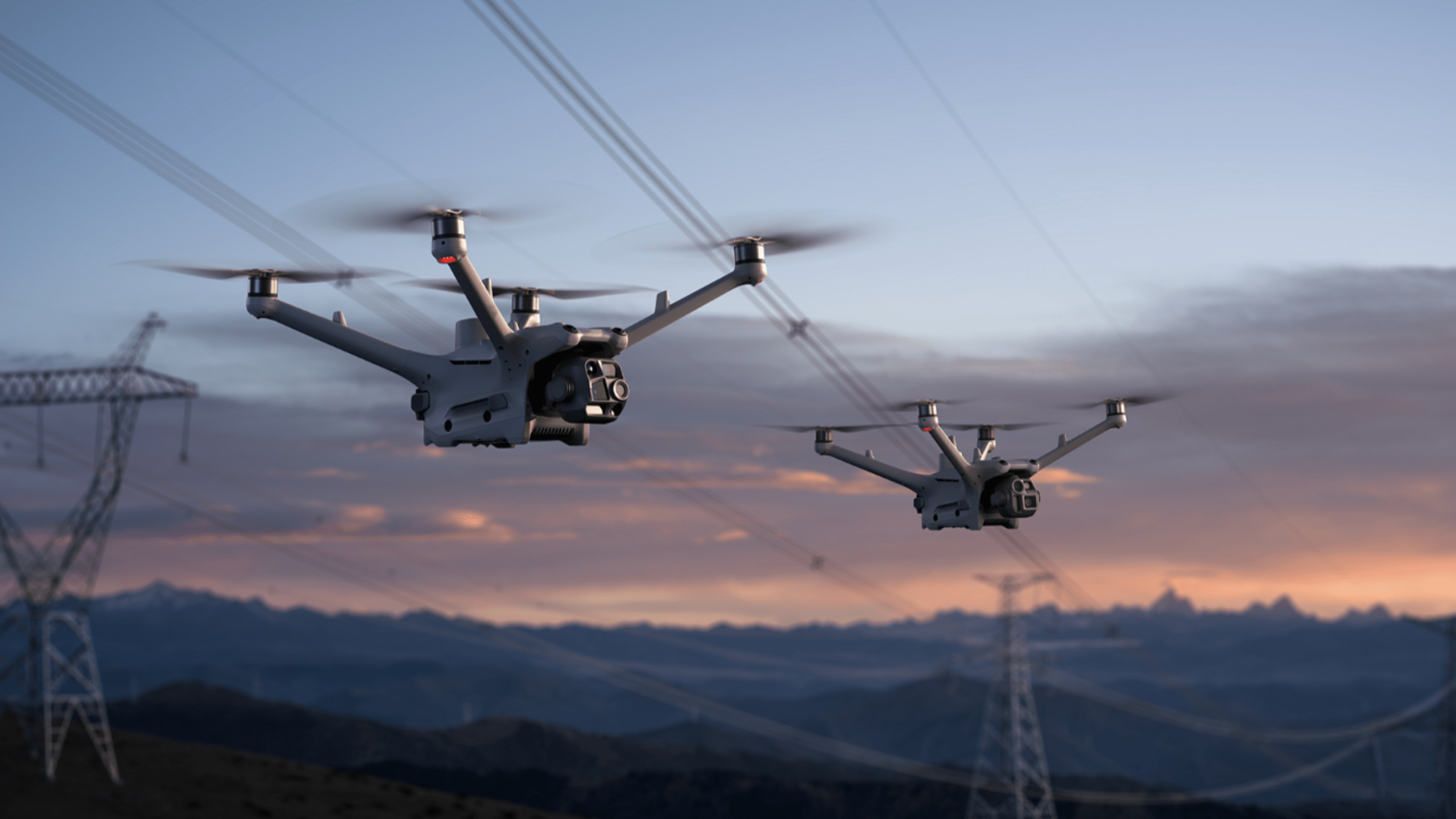

DJI MATRICE 4 SERIES

High-Performance Drones

The all-new water and dust-resistant DJI Matrice 4D and 4TD are specifically designed for DJI Dock 3, offering extended flight time, and can pair with DJI RC Plus 2 Enterprise for standalone use. Both drones are equipped with a wide-angle camera, a medium tele camera, a tele camera and a Laser Range Finder. Matrice 4D is highly effective for professional high-precision mapping and detailed surface inspections. Matrice 4TD is equipped with an infrared thermal camera and a new NIR auxiliary light, making it suitable for a wide range of applications such as infrastructure inspections, emergency response, and public safety.

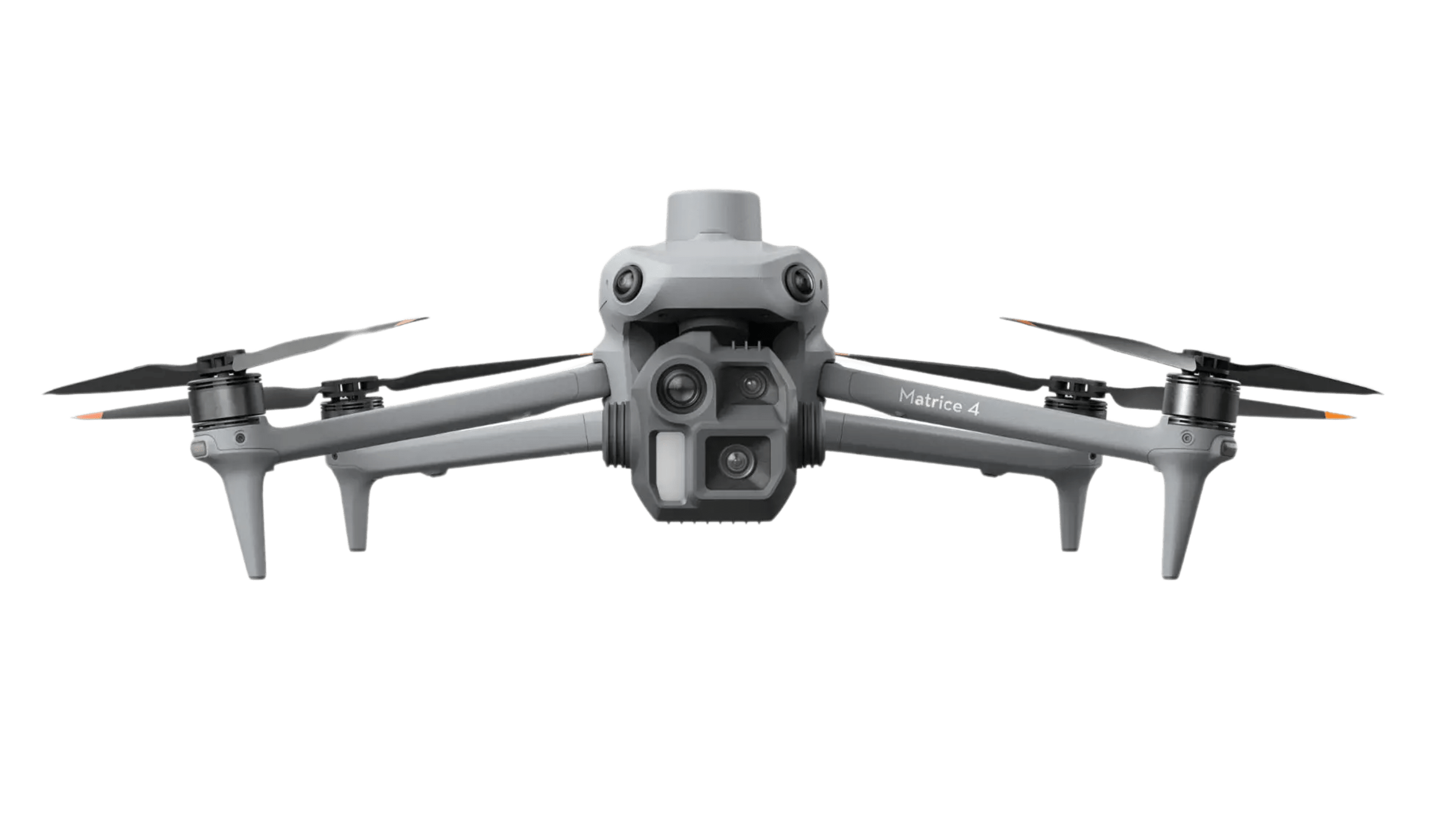

DJI Matrice 4D

Wide-Angle Camera

4/3 CMOS
20MP Effective Pixels f/2.8-f/11
24mm Format Equivalent
Mechanical Shutter

Tele Camera

1/1.5-inch CMOS
48MP Effective Pixels f/2.8
168mm Format Equivalent

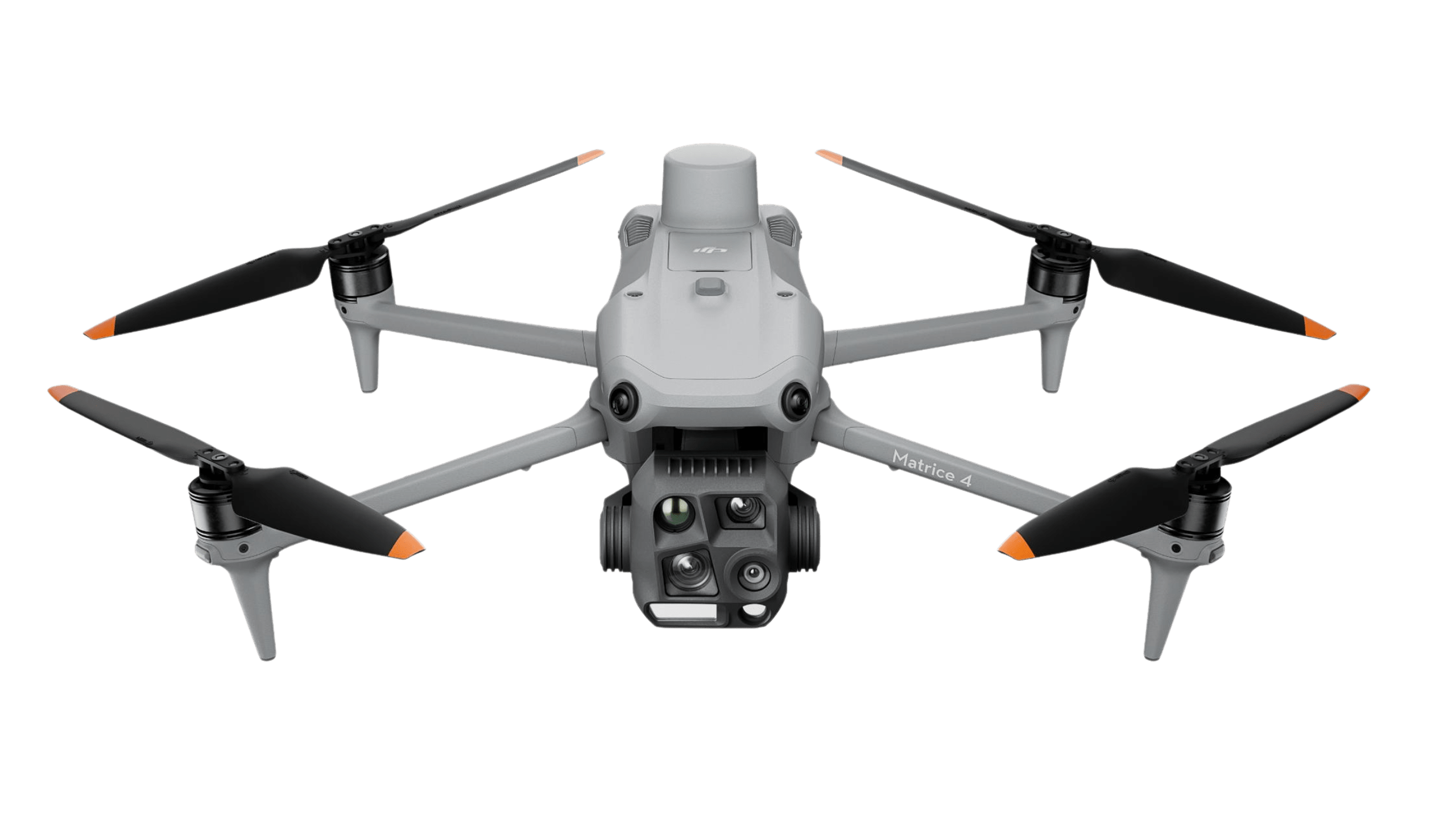

DJI Matrice 4TD

Wide-Angle Camera

1/1.3-inch CMOS
48MP Effective Pixels f/1.7
24mm Format Equivalent

Infrared Camera

640×512 Resolution f/1.0
53mm Format Equivalent
Uncooled VOx Microbolometer
Supports UHR Infrared Image mode

Tele Camera

1/1.5-inch CMOS
48MP Effective Pixels f/2.8
168mm Format Equivalent

Longer Flight Time, Robust Protection

When fully charged, Matrice 4D/4TD delivers an impressive flight time of 47 minutes at a speed of 15 m/s, achieving a remarkable 37% increase in operation time. At a radius of 10 km, these drones provide 18 minutes of operation. Both models are designed to endure harsh conditions with an impressive IP55 dust and water resistance rating.

54 Minute

Forward Flying

47 Minute

Hovering

IP55

Protection

Obstacle Sensing for Safe Operation

Obstacle Sensing Module

The Obstacle Sensing Module for Matrice 4D/4TD combines rotating LiDAR and millimeter-wave radar technologies for precise 12mm wire-level obstacle avoidance at speeds up to 15 m/s in complex power line crossings, as well as enhanced positioning in low-light conditions. Operational safety are ensured for varying environments of power distribution network and the intricate layouts of substations.

Unmatched Clarity and Precision for Any Task, Anytime

Excels in Low-Light Environments

Matrice 4D Series drones feature four high-resolution, low-light fisheye lenses, significantly enhancing visual low-light positioning and obstacle sensing capabilities.
The new Night Scene mode offers full-color night vision. Matrice 4TD additionally provides IR-Cut Filter feature for black-and-white night vision and 24/7 operations, as well as a new NIR auxiliary light that can cover distances up to 100 m.
Matrice 4TD’s infrared thermal camera supports the UHR Infrared Image mode with image resolutions up to 1280 × 1024 and a High-Res mode for detailed temperature readings.

Clear Vision and Stable Images

Matrice 4D Series drones are equipped with medium tele and tele cameras with foreground stabilization. The medium tele camera is effective for medium-range inspections, detecting pins and cracks from 10 meters, and clearly reading instrument data at substations.

The 48 MP tele camera captures details, like signs, from up to 250 m away. When using Matrice 4TD’s tele camera as the aircraft is hovering in a windless environment, the gimbal can tilt upwards by 80 degrees, making bridge underside defects clearly visible.
Upgraded stabilization keeps foreground subjects clear during telephoto shots at 10x zoom or higher.

High-Precision Surveying

Matrice 4D Series drones excel in high-precision mapping, offering a new 5-direction oblique photography function, 3-direction orthophoto photography, and real-time terrain following to meet various mapping requirements.
DJI FlightHub 2 has been upgraded for Matrice 4D/4TD operations. This upgrade introduces a range of flight route planning options, including Smart 3D Capture routes, geometric routes, and slope routes, enhancing efficiency while ensuring detailed modeling.

Seamless Airborne Relay for Mountainous Terrains

Matrice 4D Series can operate with the DJI RC Plus 2 Enterprise remote controller for standalone use while featuring an innovative onboard relay function. With this setup, one drone can fly high as a relay, allowing another drone to operate at a greater distance. The relay drone automatically faces the operating drone, ensuring smooth video transmission without a 4G signal or in obstructed conditions. This capability significantly extends the transmission range, making it ideal for SAR tasks and inspections in mountainous areas.

Comprehensive Accessory Upgrades

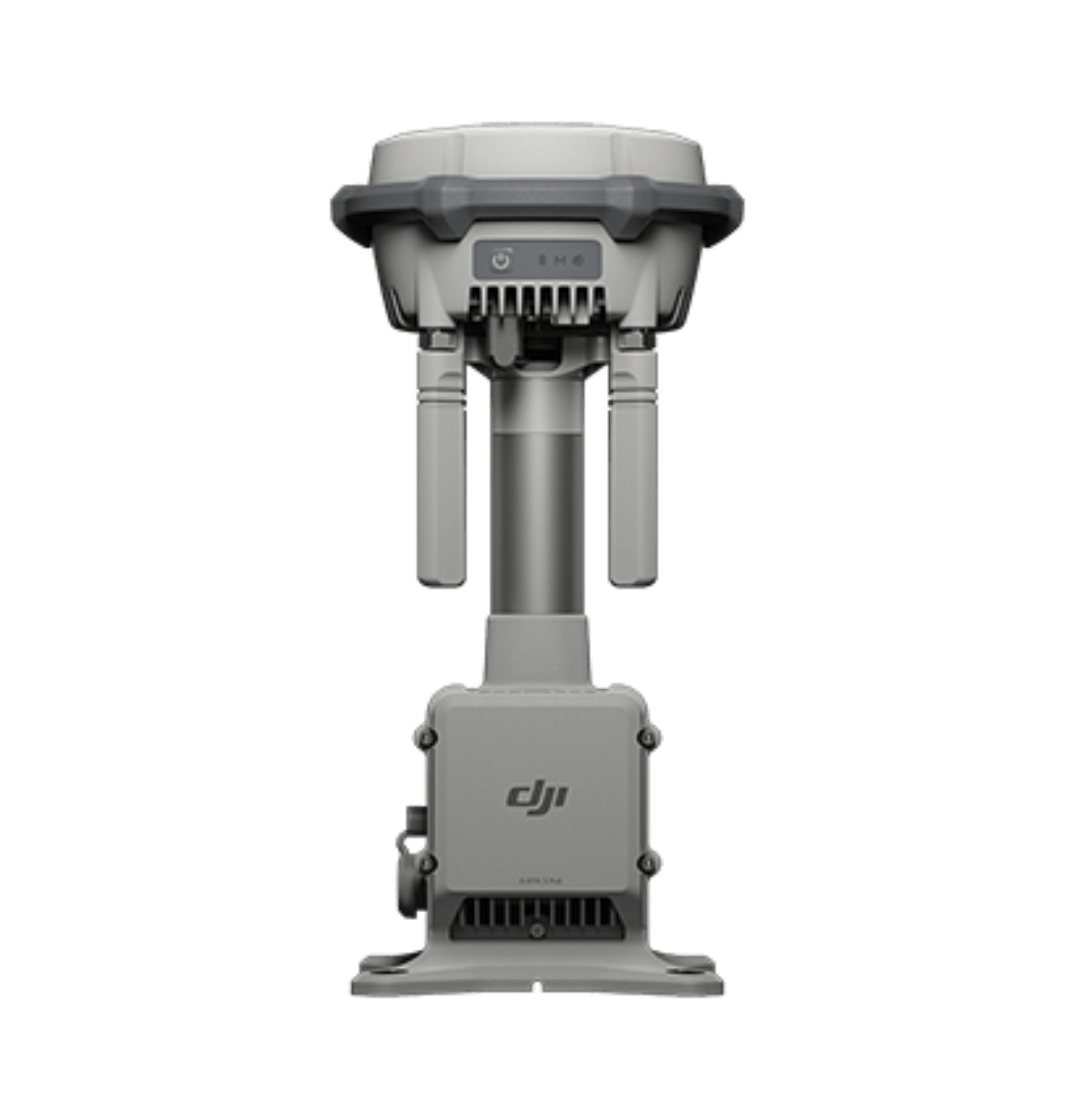

D-RTK 3 Relay Fixed Deployment Version

The D-RTK 3 Relay Fixed Deployment Version provides centimeter-level positioning accuracy and includes signal relay capabilities. When installed at elevated locations, it overcomes signal obstructions, extends video transmission range, and simplifies Dock 3 deployment.

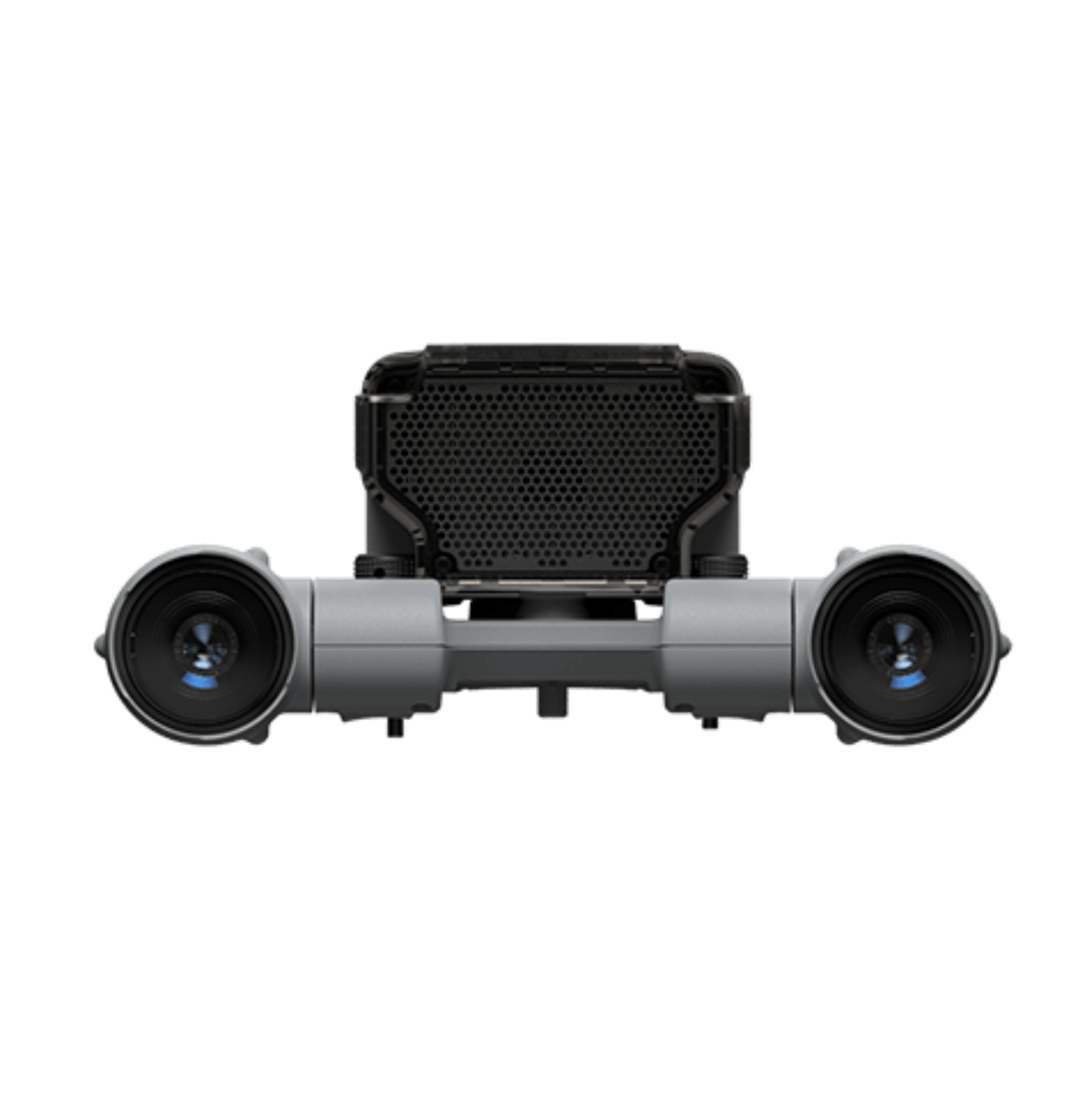

Integrated Broadcasting and Lighting

The spotlight and speaker can function independently or together, addressing various operational scenarios.

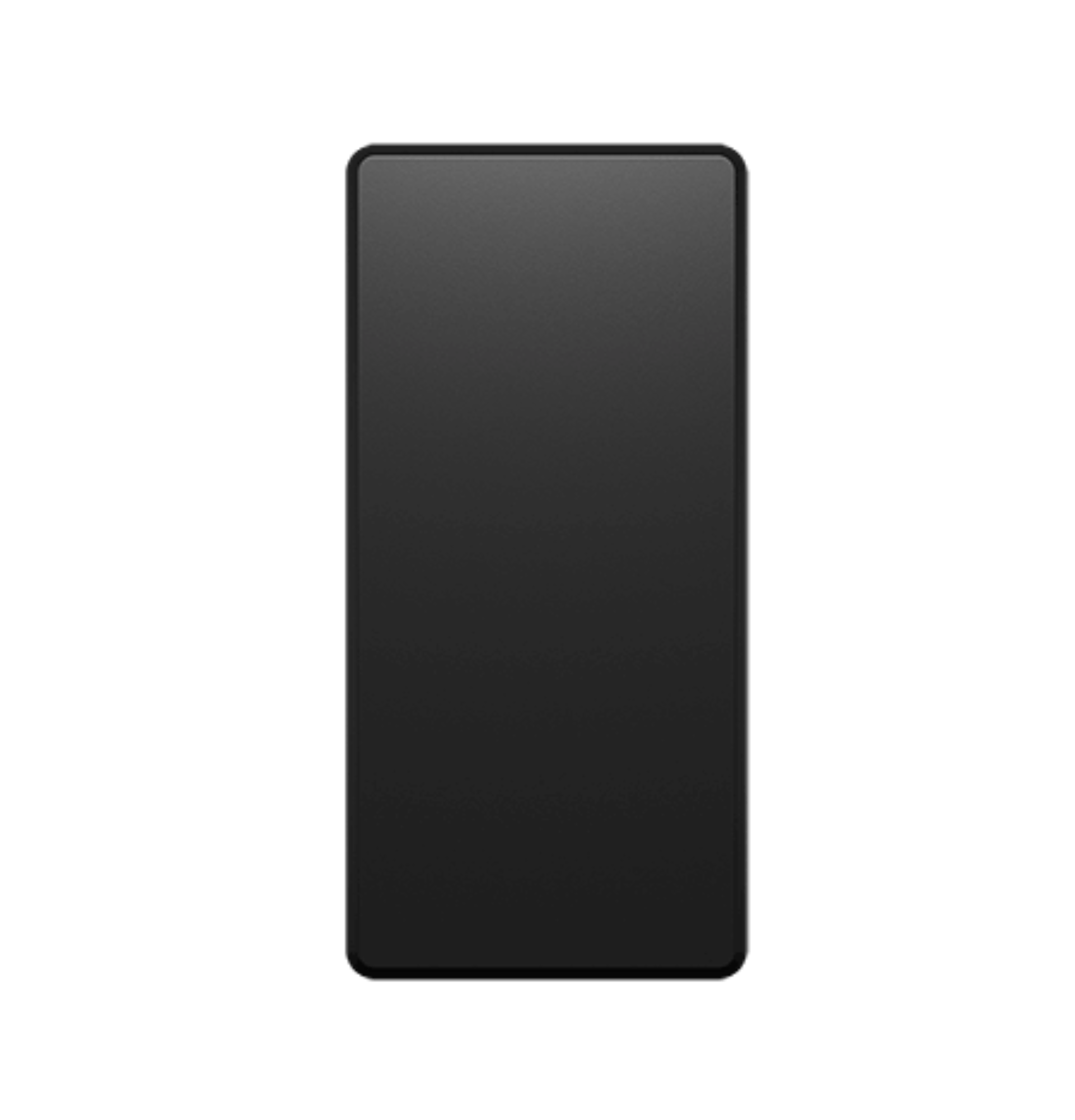

DJI 240W Power Adapter

Featuring multi-port compatibility and intelligent protections, the power adapter can fast charge drone batteries with the charging hub.

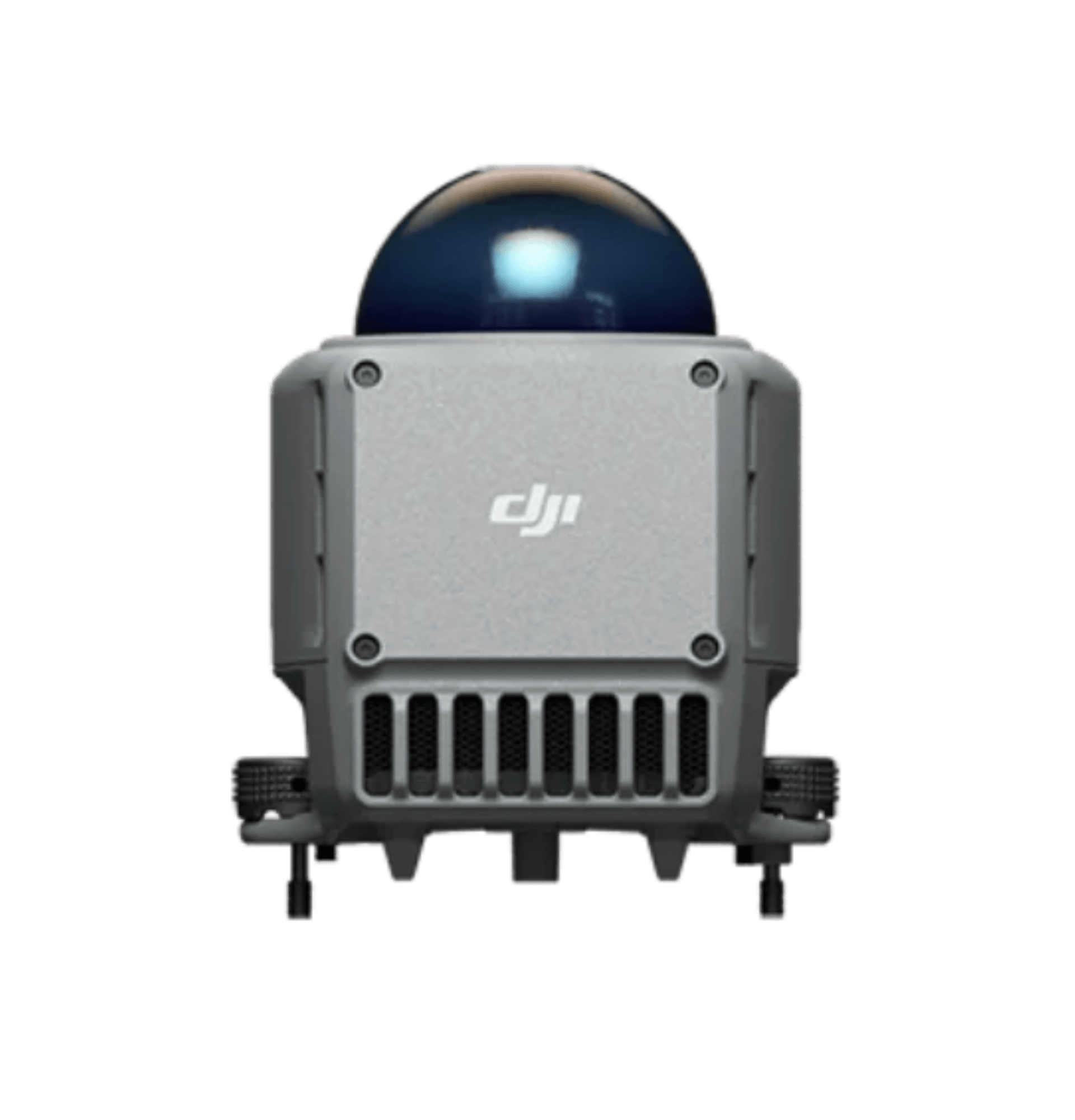

Obstacle Sensing Module

The new Obstacle Sensing Module integrates rotating LiDAR and millimeter-wave radar for precise 12mm wire-level obstacle avoidance at speeds up to 15 m/s. It enhances positioning in low-light conditions, ensuring operational safety across complex power line crossings and substation environments.

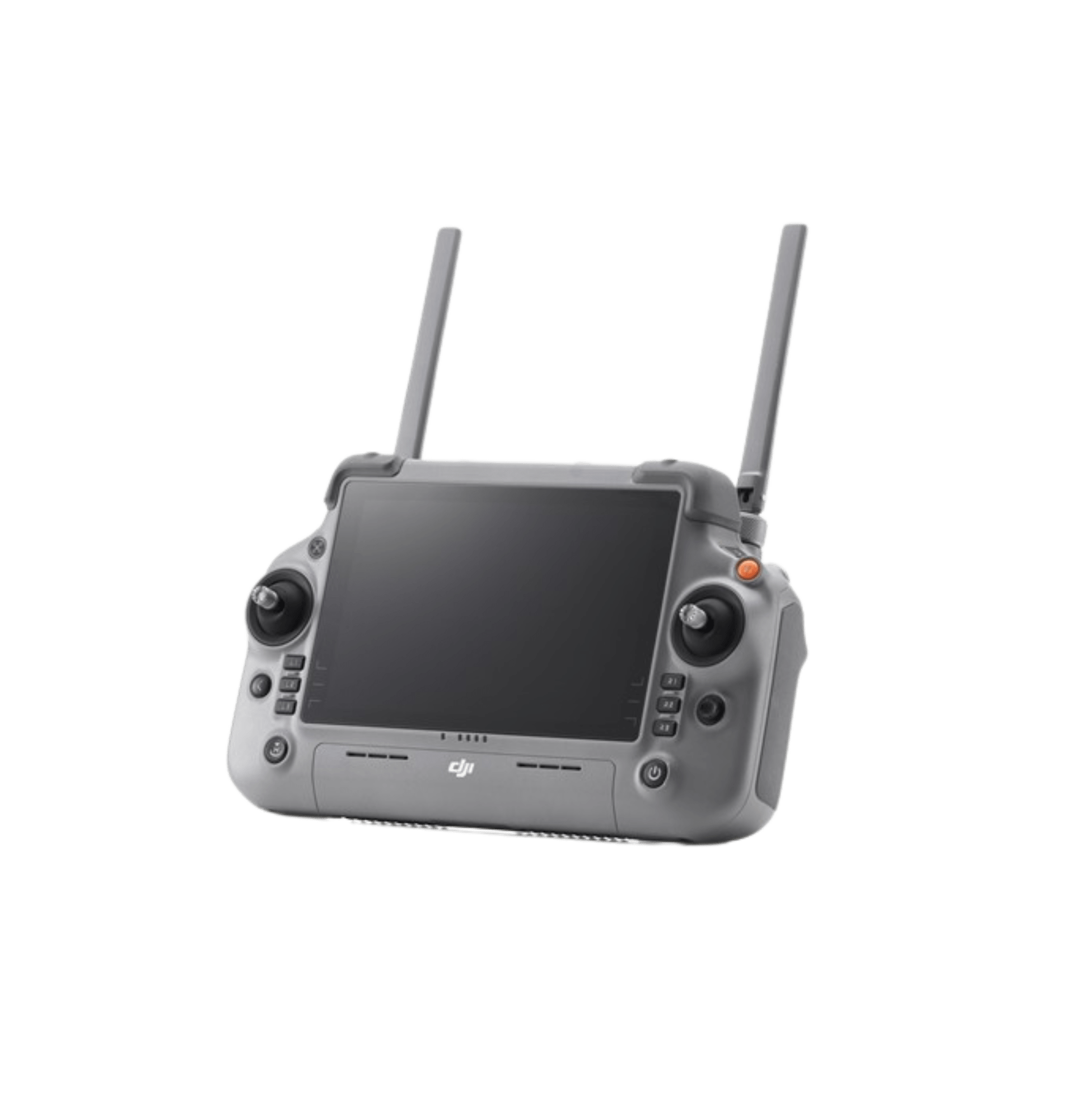

DJI RC Plus 2 Enterprise

The DJI RC Plus 2 Enterprise remote controller features a high-brightness screen for clear visibility in direct sunlight, an IP54 rating, and wide temperature tolerance from -4°F to 122°F. With a built-in high-gain antenna array, it supports SDR and 4G hybrid transmission for stable video in urban and mountainous terrains.

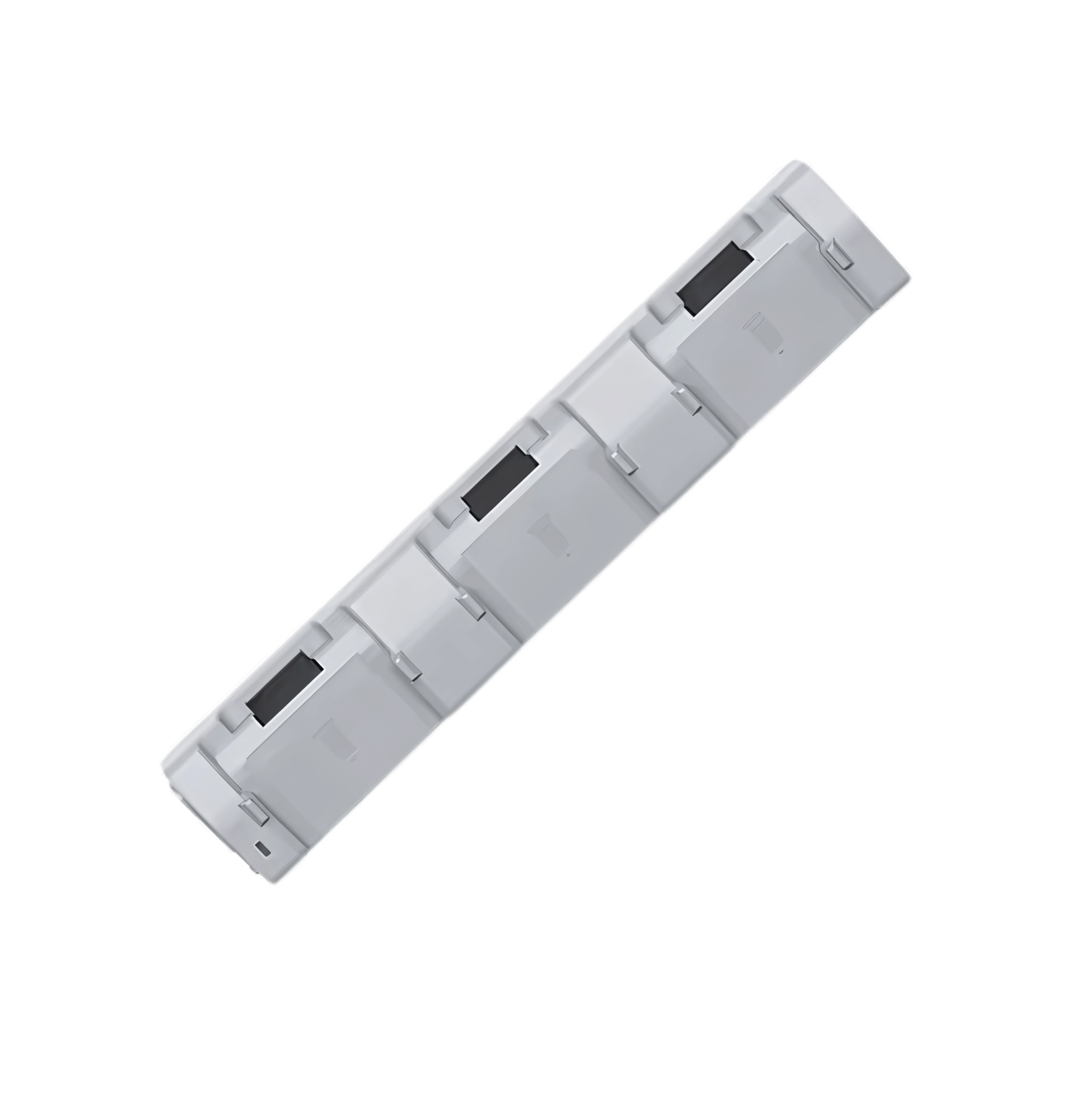

DJI Matrice 4D Series 240W Charging Hub

When used with the Power Adapter, the Charging Hub intelligently selects the battery that will charge the fastest, sequentially charging three Matrice 4D Series batteries. It supports both Standard Mode and Ready-to-Fly mode.

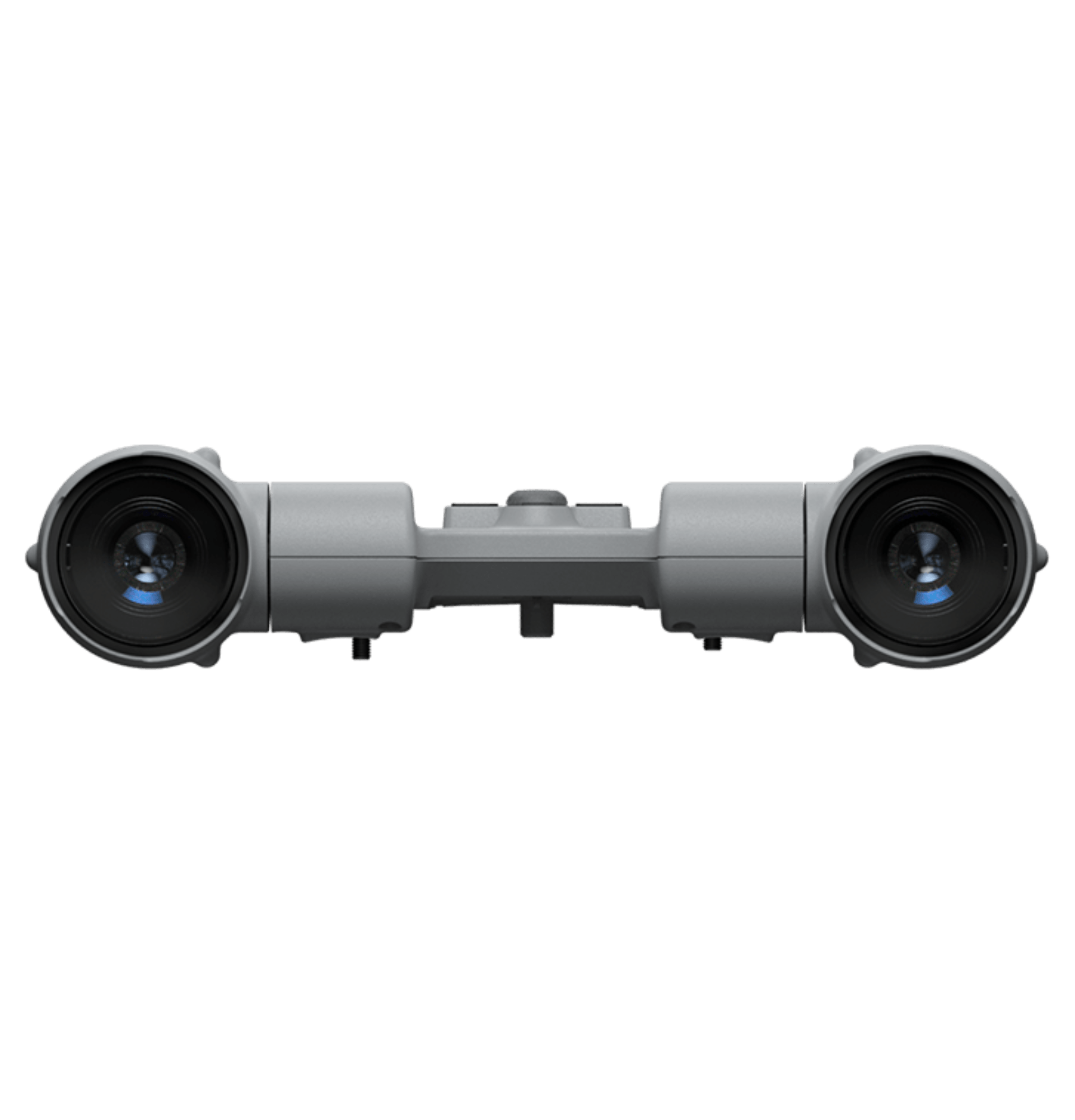

Gimbal-Following Spotlight

The DJI AL1 Spotlight offers illumination up to 100 meters and features Always-On and Strobe modes. It syncs with the gimbal to align light with the camera’s view and supports both focused and wide field-of-view lighting. Built for rugged use, it also carries an IP55 protection rating.

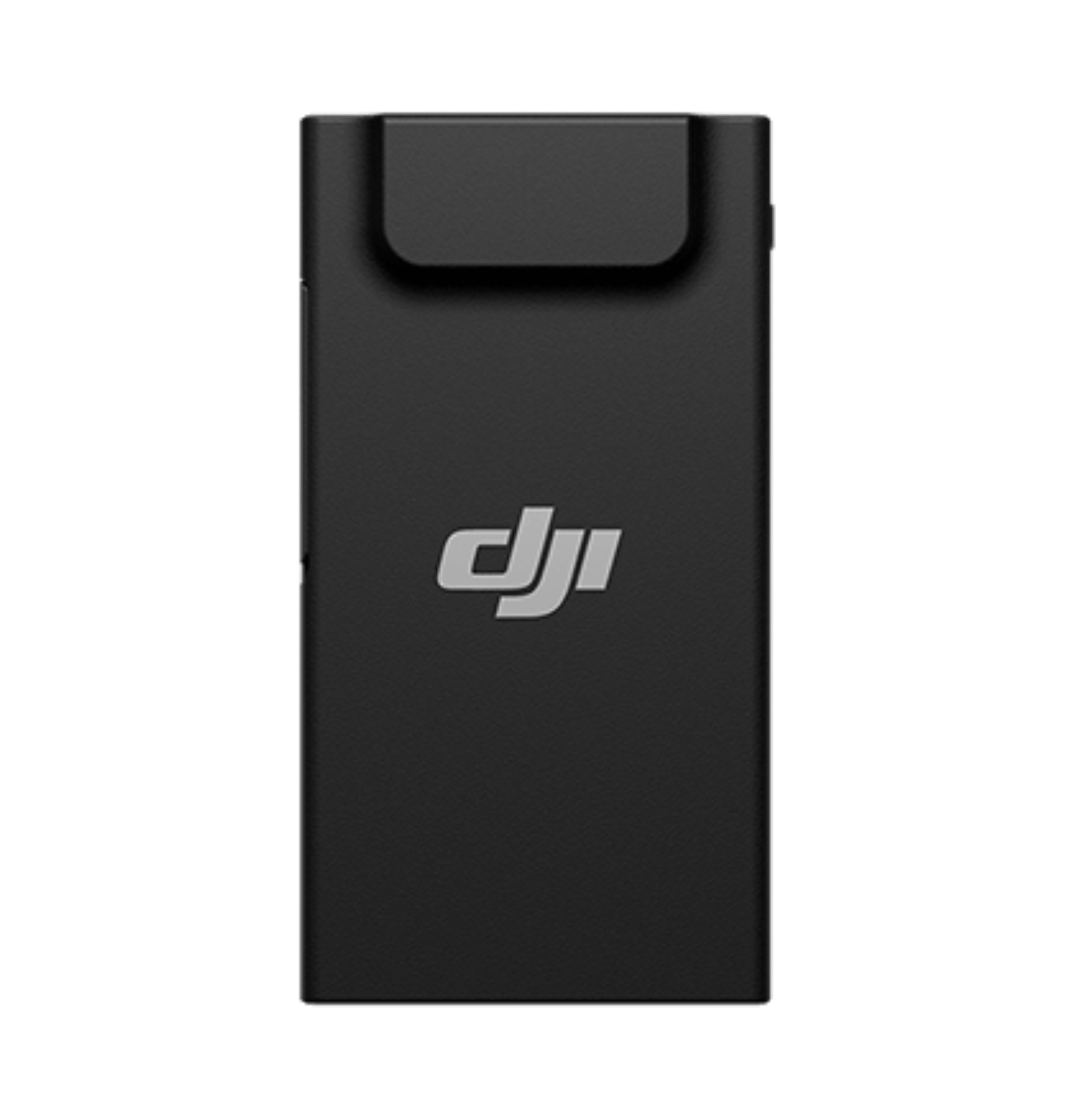

DJI Cellular Dongle 2

The DJI Cellular Dongle 2 enables 4G video transmission and integrates with the O4+ Enterprise system, enhancing flight safety in challenging environments while providing mobile network access for the remote controller.

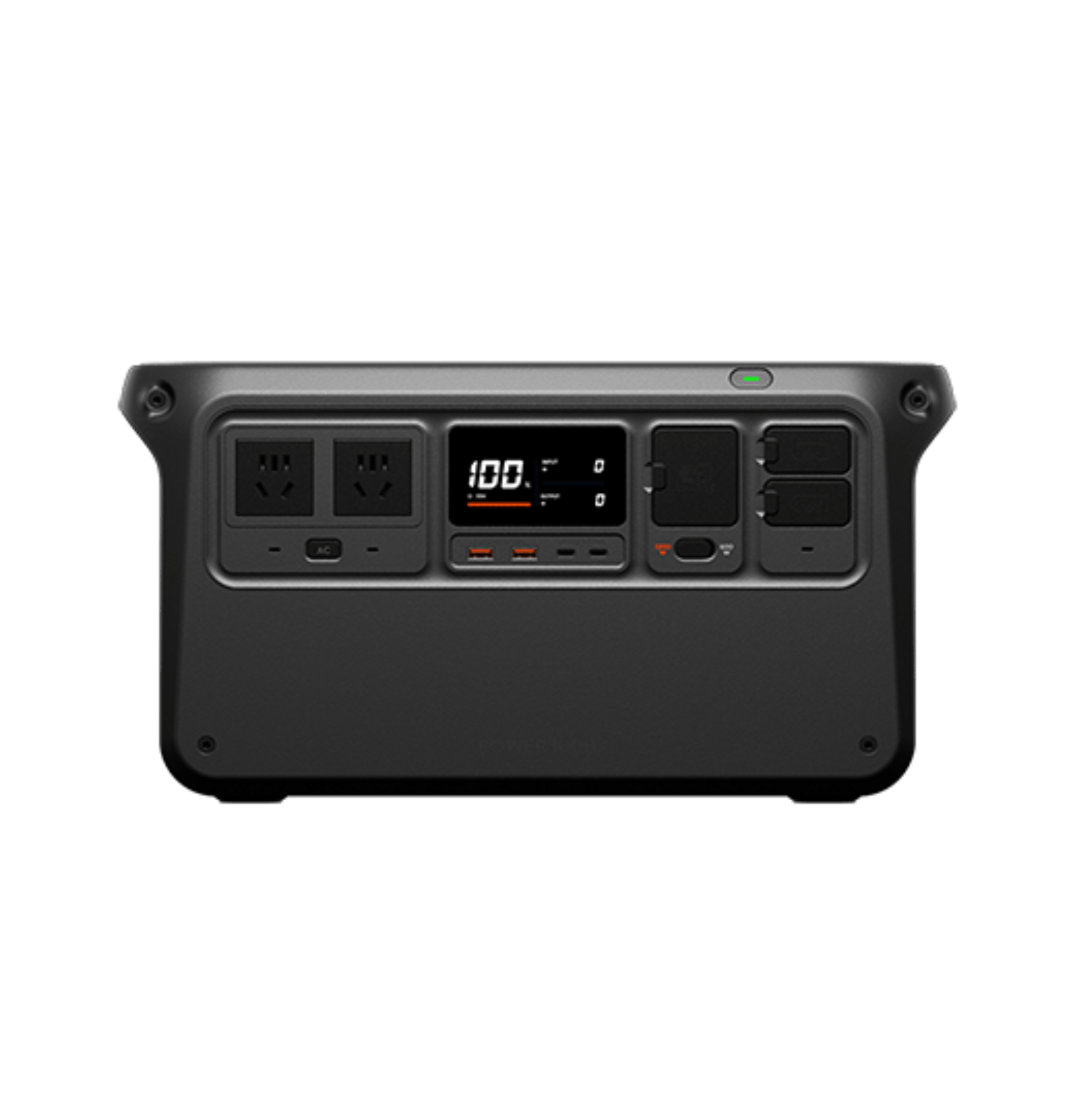

DJI Power 1000

The DJI Power 1000 delivers a stable 2200W AC output and natively supports the Matrice 4D Series 240W Charging Hub. When paired with the DJI Power 1kW Super Fast Car Charger, it enables 1kW fast charging, ensuring continuous power for seamless outdoor operations.

Real-Time Voice Speaker

The DJI AS1 Speaker delivers powerful audio with a broadcast range of up to 300 meters and a maximum volume of 114 dB at 1 meter. It supports recorded messages, media imports, text-to-speech, and real-time broadcasting with echo suppression. With an IP55 rating, it’s ideal for efficient, flexible emergency SAR operations.
