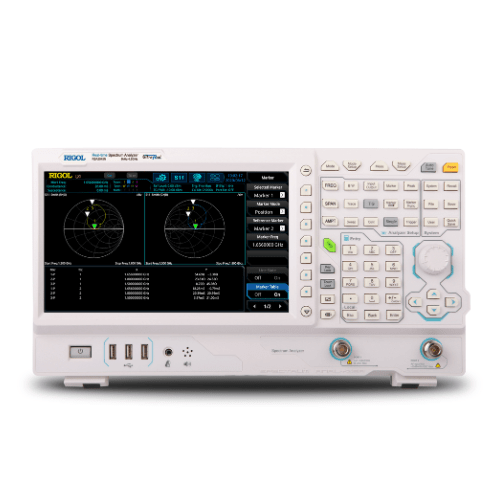

RSA3045N

9kHz-4.5GHz,SSB-102dBc/Hz,RBW 1Hz, with VNA Model

SKU: RSA3000 Category: Tags: , ,

The Rigol RSA3000 series is a compact and light weight spectrum analyzer series with premium performance standard spectrum analysis capabilities combined with a Real-Time Spectrum Analyzer which makes it possible to never miss any signal that is longer than 7.45 ?s in duration. Engineers integrating WiFi, Bluetooth and other modern RF technologies are confronted with complex challenges like frequency hopping signals, channel conflict, and spectrum interference.

9 kHz to 3 or 4.5 GHz Frequency Range
10.1? Capacitive touchscreen display
Displayed Average Noise Level as low as -161 dBm with opt. PreAmplifier
Real-Time Analysis Bandwidth of 10 MHz standard (40 MHz option)
Frequency-Mask-Trigger, IF-Power-Level-Trigger and external Trigger
7 Real-Time visualization modes
100 % POI as low as 7. 45 ?s
10 Hz Minimum Resolution Bandwidth (RBW) (1 Hz option)
