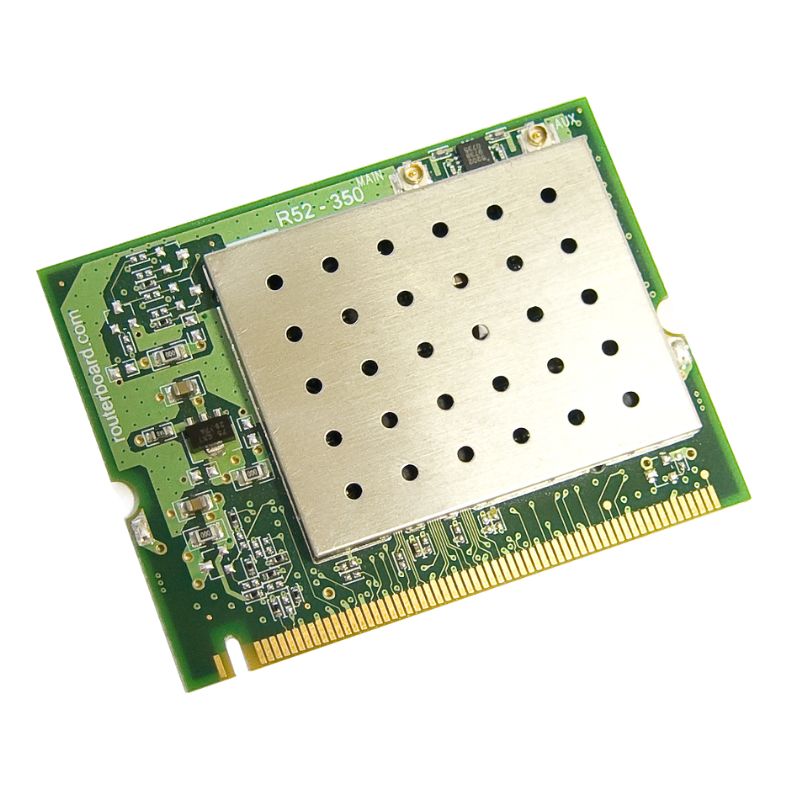

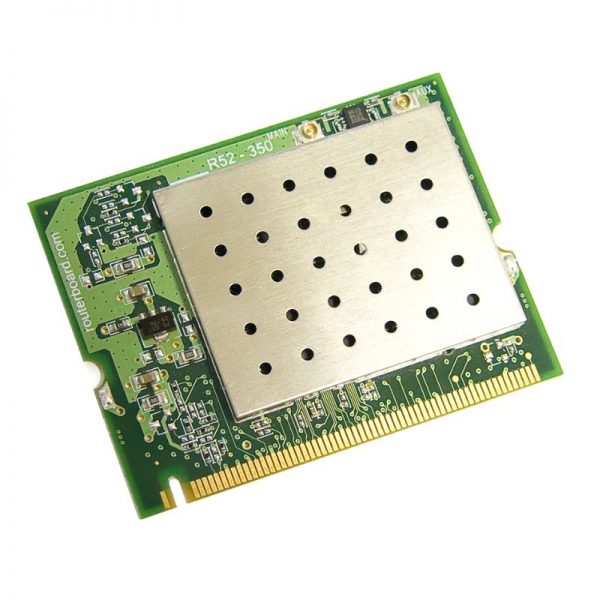

R52H

802.11a/b/g High Power Dual Band MiniPCI card with UFL connectors

SKU: MK-R52H Category: Tags: ,

MikroTik introduces the R52H wireless 802.11a+b+g miniPCI card for multiband high speed applications. It works on 2.192-2.539 and 4.920-6.100GHz frequency range and supports Turbo mode for faster transfers. The card performs best when coupled with the MikroTik RouterOS.

R52H is optimized to work with MikroTik Nstreme protocol to reach extra long distances at a great speed. The Nstreme protocol is MikroTik proprietary wireless protocol created to overcome speed and distance limitations of IEEE 802.11 standards and to extend point-to-point and point-to-multi point wireless link performance. The new Nstreme-dual protocol designed to provide real full-duplex communications over wireless with a pair of wireless cards – one for transmitting data and one for receiving.

Card has two U.fl connectors for external antennas

Additional information

2GHz

Yes

5GHz

Yes

Chipset

AR5414

Connector

uFl

Format

miniPCI

Output power

25dBm

Tested ambient temperature

-40℃ to +70℃

Datasheet

Download
