Frequency range: 100kHz – 1GHz.

SKU: DSA700 Category: Tags: , ,

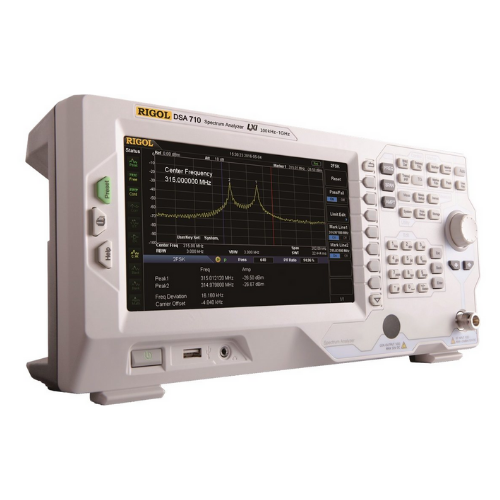

The Rigol DSA710 is a compact and light weight Spectrum Analyzer with premium performance for portable applications. The use of digital IF (intermediate frequency) technology guarantees reliability and performance to meet the most demanding RF applications. The very large display (20.3 cm / 8") of the Rigol DSA710 Spectrum Analyzer provides a resolution of 800x480 pixels allowing a very good overview of all its comfortable functions like Auto Tune, Auto Range, Auto Scale and Auto Couple.

All-Digital IF Technology
Frequency Range from 100 kHz up to 1 GHz
Min. -130 dBm Displayed Average Noise Level (Typ.)
Min. <-80 dBc/Hz @ 10 kHz Offset Phase Noise Level Measurement Uncertainty <1.5 dB 100 Hz Minimum Resolution Bandwidth Advanced Measurement Functions (Opt.) EMI Filter & Quasi-Peak Detector Kit (Opt.) PC Software (Opt.) Optional RF TX/RX Training Kit Optional RF Accessories (Cable, Adaptor, Attenuator ...) Complete Connectivity: LAN (LXI), USB Host & Device, GPIB (Opt.) 8 Inch WVGA (800?480) Display
