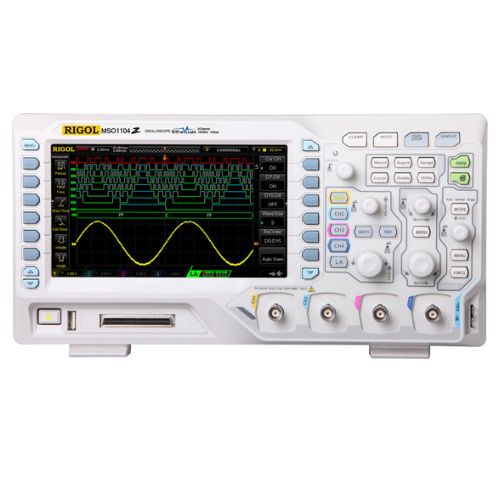

DS1104Z-S Plus

100MHz, 4CH, 1GSa/s, 2CH 25MHz AFG,MSO ready

SKU: MSO/DS1000Z Category: Tags: , , ,

The Rigol DS1104Z-S Plus 1GSa/s, 100MHz, 4-channel Digital Oscilloscopes offers the flexibility of a future upgrade to a mixed signal oscilloscope (16 digital channels), simply by ordering the RPL1116. Available in 70MHz and 100MHz versions, The DS1000Z series of digital oscilloscopes use the Ultravision technology platform, which continues the characteristics of deep storage and high waveform capture rate, and has an excellent cost performance advantage.

MSO Ready ? Can be upgraded to 16 digital channels
100MHz bandwidth, 4 channels with built-in 2 channel function / arbitrary waveform generator
Maximum sample rate 1GSa/s
Vertical scale 1mV/div to 10V/div
Standard memory depth now 24Mpts (was 12Mpts)
Innovative ?UltraVision? technology
Up to 30,000wfms/s waveform capture rate
Up to 60,000 frames real-time waveform record and replay (optional)
7? WVGA (800?480) TFT LCD display, 64 intensity grading levels
